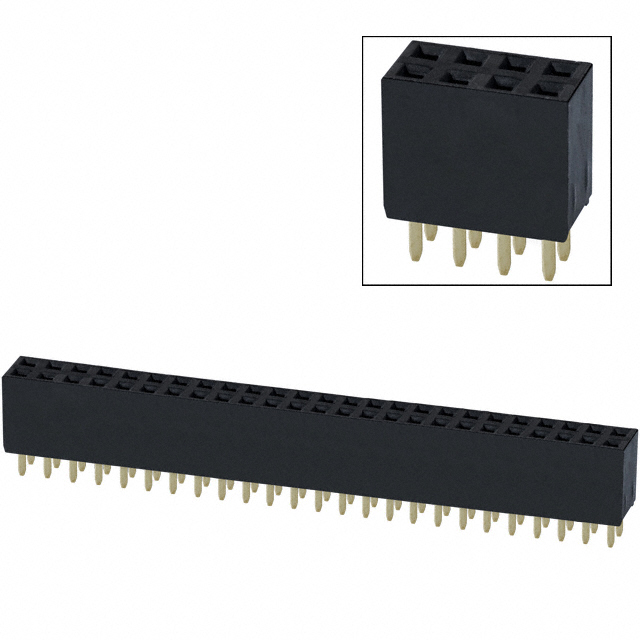

PPPC252LFBN-RC

Active

Sullins Connector Solutions

CONN HDR 50POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPPC252LFBN-RC

Active

Sullins Connector Solutions

CONN HDR 50POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC252LFBN-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

PPPC252 Series

Part	Fastening Type	Contact Finish - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post [x]	Number of Positions Loaded	Number of Rows	Material Flammability Rating	Mounting Type	Insulation Color	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Connector Type	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish Thickness - Mating	Contact Material	Insulation Material	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Contact Length - Post
Sullins Connector Solutions PPPC252LFBN-RC	Push-Pull	Gold	250 VDC	0.1 in	2.54 mm	0.335 "	8.51 mm	3.2 mm	0.126 in	All	2	UL94 V-0	Through Hole	Black	Gold	3 A	50	Header	Flash	-40 °C	105 ░C	Square	Flash	Phosphor Bronze	Polyester	Solder	2.54 mm	0.1 in	Female Socket
Sullins Connector Solutions PPPC252KFMS	Push-Pull	Gold	250 VDC	0.1 in	2.54 mm	0.299 in	7.6 mm			All	2	UL94 V-0	Surface Mount	Black	Gold	3 A	50	Header	Flash	-40 °C	125 °C	Square	Flash	Phosphor Bronze	Polyester	Solder	2.54 mm	0.1 in	Female Socket
Sullins Connector Solutions PPPC252LJBN-RC	Push-Pull	Gold	250 VDC	0.1 in	2.54 mm			3.15 mm		All	2	UL94 V-0	Through Hole Right Angle	Black	Gold	3 A	50	Header	Flash	-40 °C	105 ░C	Square	Flash	Phosphor Bronze	Polyester	Solder	2.54 mm	0.1 in	Female Socket	0.124 "
Sullins Connector Solutions PPPC252LFBN	Push-Pull	Gold	250 VDC	0.1 in	2.54 mm	0.335 "	8.51 mm	3.2 mm	0.126 in	All	2	UL94 V-0	Through Hole	Black	Gold	3 A	50	Header	Flash	-40 °C	105 ░C	Square	Flash	Phosphor Bronze	Polyester	Solder	2.54 mm	0.1 in	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.67
		10	$ 2.42
		80	$ 2.14
		440	$ 1.82
		1000	$ 1.55
		5000	$ 1.53

Description

General part information

PPPC252 Series

50 Position Header Connector 0.100" (2.54mm) Through Hole Gold
