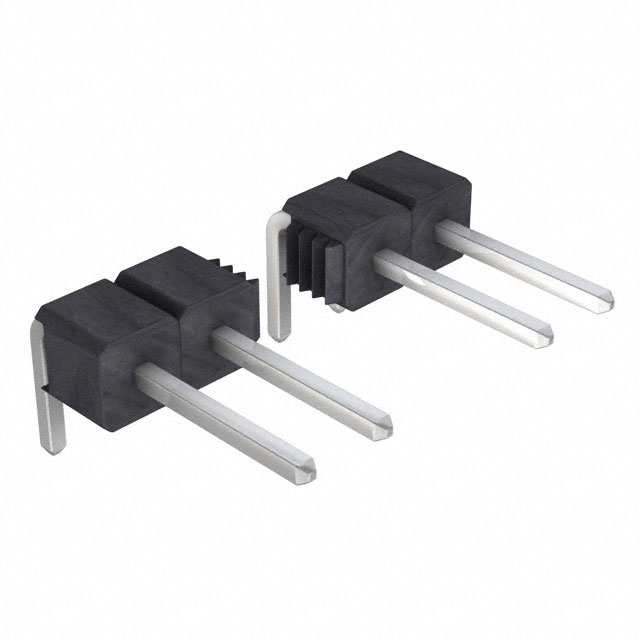

890-80-032-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

890-80-032-20-001101

Active

PRECI-DIP SA

CONN HEADER R/A 32POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	890-80-032-20-001101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	6 mm
Contact Length - Mating	0.236 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

890-80 Series

...

Part	Number of Positions	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Insulation Material	Current Rating (Amps)	Contact Material	Contact Finish - Post	Shrouding	Material Flammability Rating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Mounting Type	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Voltage Rating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Type	Number of Positions
PRECI-DIP SA 890-80-027-10-002101	27	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	7 mm	0.276 in	Through Hole	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm	12.54 mm	0.494 in	-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-038-20-002101	38	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	7 mm	0.276 in	Through Hole Right Angle	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm			-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-034-10-002101	34	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	7 mm	0.276 in	Through Hole	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm	12.54 mm	0.494 in	-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-016-20-002101		Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	7 mm	0.276 in	Through Hole Right Angle	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm			-55 °C	125 °C	Solder	Male Pin	16
PRECI-DIP SA 890-80-022-10-001101	22 positions	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	6 mm	0.236 in	Through Hole	Push-Pull	0.122 "	3.1 mm	All	150 VDC	0.1 in	2.54 mm	11.64 mm	0.458 "	-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-034-20-001101	34	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	6 mm	0.236 in	Through Hole Right Angle	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm			-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-038-10-003101	38	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	8.51 mm	0.335 in	Through Hole	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm	14.04 mm	0.553 in	-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-023-10-001101	23	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	6 mm	0.236 in	Through Hole	Push-Pull	0.122 "	3.1 mm	All	150 VDC	0.1 in	2.54 mm	11.64 mm	0.458 "	-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-032-20-001101		Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	6 mm	0.236 in	Through Hole Right Angle	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm			-55 °C	125 °C	Solder	Male Pin
PRECI-DIP SA 890-80-040-20-002101	40	Black	1	0.1 in	2.54 mm	Header	Glass Filled Nylon Polyamide (PA)	3 A	Brass	Tin	Unshrouded	UL94 V-0	Square	7 mm	0.276 in	Through Hole Right Angle	Push-Pull	0.118 in	3 mm	All	150 VDC	0.1 in	2.54 mm			-55 °C	125 °C	Solder	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	390	$ 1.79

Description

General part information

890-80 Series

Connector Header Through Hole, Right Angle 32 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
