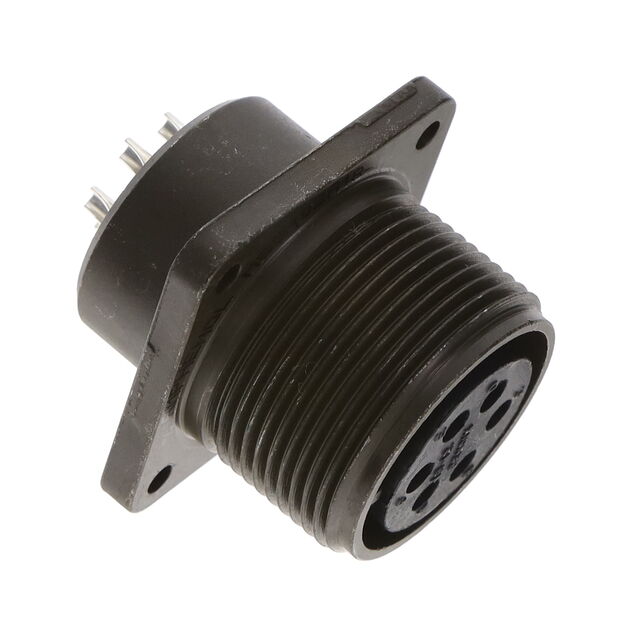

MS3102A18-12S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 6P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3102A18-12S

Active

Amphenol Industrial Operations

CONN RCPT FMALE 6P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A18-12S

Applications	Military, Marine
Cable Opening [custom]	1 in
Cable Opening [custom]	25.4 mm
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	18-12
Shielding	Unshielded

MS3102A18 Series

Part	Qualification	Color	Shell Material	Mounting Feature	Grade	Shielding	Primary Material	Applications	Current Rating (Amps)	Contact Finish - Mating	Contact Material	Insert Material	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Orientation	Ingress Protection	Number of Positions	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]
Amphenol Industrial Operations MS3102A18-20S	MIL-DTL-5015	Olive Drab	Aluminum Alloy	Flange	Military	Unshielded	Metal	Marine Military	13 A	Silver	Copper Alloy	Neoprene	Olive Drab Chromate over Cadmium	18	20	-55 °C	125 °C	Receptacle Female Sockets	N	Environment Resistant
Amphenol Industrial Operations MS3102A18-12S	MIL-5015	Olive Drab	Aluminum Alloy	Flange		Unshielded	Metal	Marine Military		Silver	Copper Alloy	Neoprene	Olive Drab Chromate over Cadmium			-55 °C	125 °C	Receptacle Female Sockets	N		6	18-12	1 in	25.4 mm
Amphenol Industrial Operations MS3102A18-5P-RES
Amphenol Industrial Operations MS3102A18-9PW	MIL-5015	Olive Drab	Aluminum Alloy	Flange		Unshielded	Metal	Marine Military		Silver	Copper Alloy	Neoprene	Olive Drab Chromate over Cadmium			-55 °C	125 °C	Male Pins Receptacle	W		7	18-9	1 in	25.4 mm
Amphenol Industrial Operations MS3102A18-7P
Amphenol Industrial Operations MS3102A18-12SZ-RES
Amphenol Industrial Operations MS3102A18-19S	MIL-5015	Olive Drab	Aluminum Alloy	Flange		Unshielded	Metal	Marine Military		Silver	Copper Alloy	Neoprene	Olive Drab Chromate over Cadmium	18	19	-55 °C	125 °C	Receptacle Female Sockets	N		10		1 in	25.4 mm
Amphenol Industrial Operations MS3102A18-9SW-RES
Amphenol Industrial Operations MS3102A18-20SX-RES
Amphenol Industrial Operations MS3102A18-6S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.26
		10	$ 23.16
		25	$ 21.71
		50	$ 20.68
		100	$ 19.69
		250	$ 18.46
		500	$ 17.58

Description

General part information

MS3102A18 Series

6 Position Circular Connector Receptacle, Female Sockets Solder Cup
