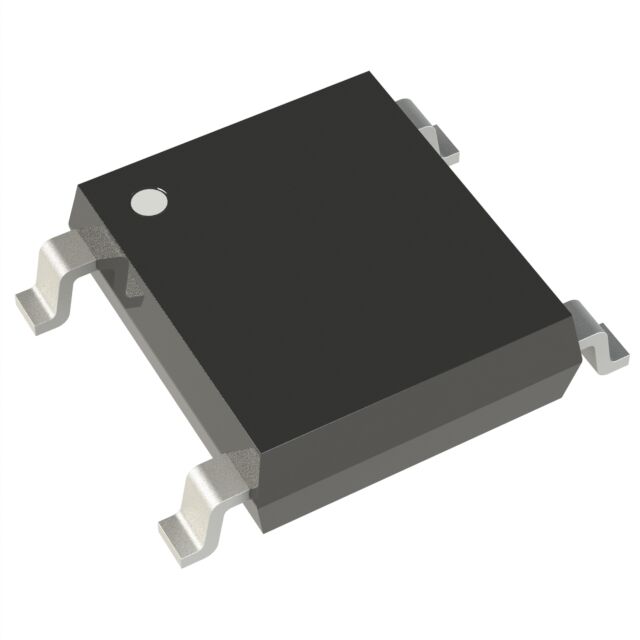

ABS15S

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 1.2KV 2A ABS

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1PHASE 1.2KV 2A ABS

Technical Specifications

Parameters and characteristics for this part

Specification	ABS15S

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	ABS
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Technology	Current - Average Rectified (Io)	Package / Case	Current - Reverse Leakage @ Vr	Diode Type
Diotec Semiconductor ABS15S	1.1 V	1.2 kV	150 °C	-50 °C	ABS	Surface Mount	Standard	2 A	4-SMD Gull Wing	5 µA	Single Phase
Diotec Semiconductor ABS15K	1.1 V	800 V	150 °C	-50 °C	ABS	Surface Mount	Standard	2 A	4-SMD Gull Wing	5 µA	Single Phase
Diotec Semiconductor ABS15Y	1.3 V	2 kV	150 °C	-50 °C	ABS	Surface Mount	Standard	2 A	4-SMD Gull Wing	5 µA	Single Phase
Diotec Semiconductor ABS15J	1.1 V	600 V	150 °C	-50 °C	ABS	Surface Mount	Standard	2 A	4-SMD Gull Wing	5 µA	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5000	$ 0.05

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Surface Mount ABS
