Q-62064000K024i

Active

Amphenol Custom Cable

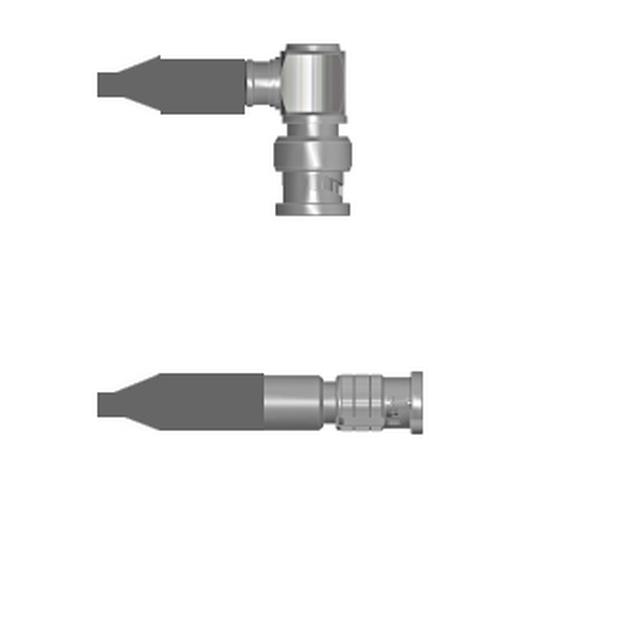

CBL ASSY BNC-HDBNC PLUG-PLUG 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-62064000K024i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC PLUG-PLUG 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-62064000K024i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	Belden 4855R
Color	Black
Features	Shielded
Frequency - Max [Max]	18 GHz
Length	24 "
Length	609.6 mm
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-620640 Series

Part	Features	1st Connector Mounting Type	Length	Length	Overall Impedance	Style	Cable Type	2nd Connector Mounting Type	Color	2nd Connector	Frequency - Max [Max]	1st Connector	1st Contact Gender	2nd Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-62064000K024i	Shielded	Free Hanging (In-Line)	24 "	609.6 mm	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male
Amphenol Custom Cable Q-62064000K108i	Shielded	Free Hanging (In-Line)	108 in	2.7 m	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	9 ft
Amphenol Custom Cable Q-62064000K084i	Shielded	Free Hanging (In-Line)	84 in	2.1 m	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	7 ft
Amphenol Custom Cable Q-62064000K1.5M	Shielded	Free Hanging (In-Line)	59.1 in	1.5 m	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	4.9 ft
Amphenol Custom Cable Q-62064000K048i	Shielded	Free Hanging (In-Line)	48 in	1200 mm	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	4 ft
Amphenol Custom Cable Q-62064000K003M	Shielded	Free Hanging (In-Line)	118.1 in	3 m	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	9.8 '
Amphenol Custom Cable Q-62064000K036i	Shielded	Free Hanging (In-Line)	36 in	91.44 cm	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male
Amphenol Custom Cable Q-62064000K018i	Shielded	Free Hanging (In-Line)			75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-62064000K2.5M	Shielded	Free Hanging (In-Line)	98.4 in	2.5 m	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	8.2 '
Amphenol Custom Cable Q-62064000K060i	Shielded	Free Hanging (In-Line)	5 '	1.5 m	75 Ohms	BNC to HD-BNC	Belden 4855R	Free Hanging (In-Line)	Black	HD-BNC Plug	18 GHz	BNC Plug Right Angle	Male	Male	5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 161.25
		25	$ 158.11
		50	$ 154.98
		100	$ 151.84
		250	$ 148.70

Description

General part information

Q-620640 Series

Cable Assembly Coaxial BNC to HD-BNC Belden 4855R 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
