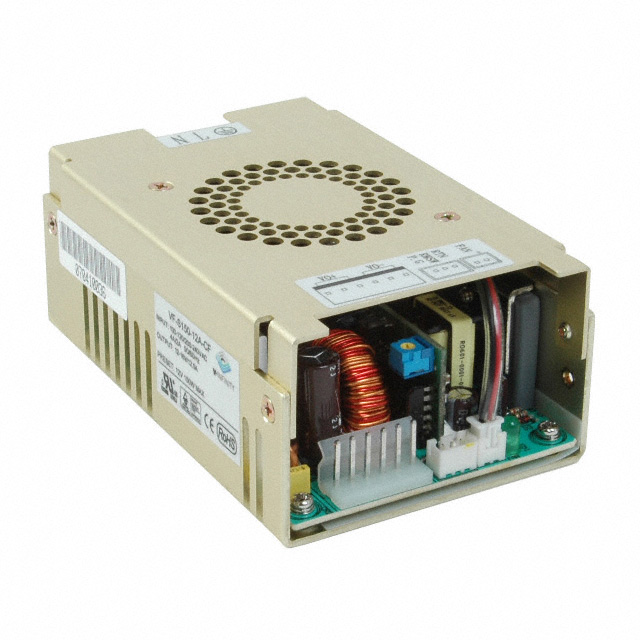

VF-S250-12A-CF

Active

CUI Inc.

AC/DC CONVERTER 12V 250W

Deep-Dive with AI

Search across all available documentation for this part.

VF-S250-12A-CF

Active

CUI Inc.

AC/DC CONVERTER 12V 250W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VF-S250-12A-CF

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	20.83 A
Efficiency	80 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	250 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	3.2 in
Size / Dimension [y]	81.3 mm
Size / Dimension [z]	50.8 mm
Size / Dimension [z]	2 "
Standard Number	61000-3-3, 60950-1, 61000-3-2, 55032 Class B, 55024, 62368-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

VF-S250 Series

Part	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Efficiency	Applications	Mounting Type	Voltage - Isolation	Current - Output 1	Type	Number of Outputs	Power (Watts)	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Features	Operating Temperature [Max]
CUI Inc. VF-S250-12A-CF	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	CB Scheme EN IEC SIQ TUV UL	80 %	ITE (Commercial)	Chassis Mount	3000 V	20.83 A	Enclosed	1	250 W	12 V	90 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	70 °C
CUI Inc. VF-S250-12A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	3.2 in	127 mm	38.1 mm	81.3 mm	5 in	1.5 "	CB Scheme EN IEC SIQ TUV UL	80 %	ITE (Commercial)	Chassis Mount	3000 V	20.83 A	Open Frame	1	250 W	12 V	90 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	70 °C
CUI Inc. VF-S250-24A-CF	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	CB Scheme EN IEC SIQ TUV UL	83 %	ITE (Commercial)	Chassis Mount	3000 V	10.42 A	Enclosed	1	250 W	24 V	90 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	70 °C
CUI Inc. VF-S250-48A-CF	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	3.2 in	127 mm	50.8 mm	81.3 mm	5 in	2 "	CB Scheme EN IEC SIQ TUV UL	83 %	ITE (Commercial)	Chassis Mount	3000 V	5.21 A	Enclosed	1	250 W	48 V	90 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	70 °C
CUI Inc. VF-S250-24A	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1	3.2 in	127 mm	38.1 mm	81.3 mm	5 in	1.5 "	CB Scheme EN IEC SIQ TUV UL	83 %	ITE (Commercial)	Chassis Mount	3000 V	10.42 A	Open Frame	1	250 W	24 V	90 VAC	264 VAC	Adjustable Output PFC Remote On/Off Universal Input	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 172.57
		5	$ 167.18
		10	$ 161.79
		25	$ 156.39
		50	$ 151.00

Description

General part information

VF-S250 Series

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available
