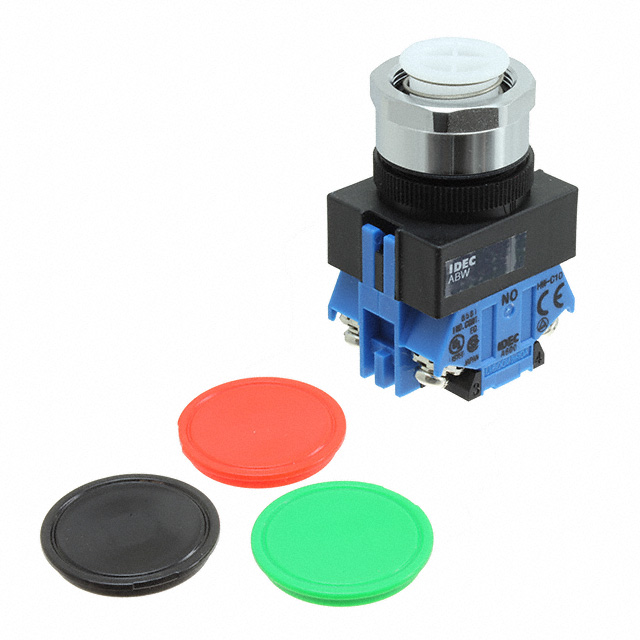

ABW101-BGR

Active

IDEC

TW FLUSH PB

Search across all available documentation for this part.

Active

IDEC

TW FLUSH PB

Technical Specifications

Parameters and characteristics for this part

Specification	ABW101-BGR

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NC
Color - Actuator/Cap	Red, Black, Green
Current Rating (Amps)	8 A, 10 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	5000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - DC	Mounting Type	Switch Function	Circuit	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Type	Current Rating (Amps)	Ingress Protection	Type	Termination Style	Actuator Marking	Color - Actuator/Cap
IDEC ABW101-BGR	50 °C	-25 °C	5000000 Cycles	24 V	Panel Mount Front	On-Mom	SPST-NC	110 V	22.3 mm	Button Flush Round	8 A 10 A	IP65 - Dust Tight Water Resistant	Standard	Screw Terminal	No Marking	Black Green Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Front
