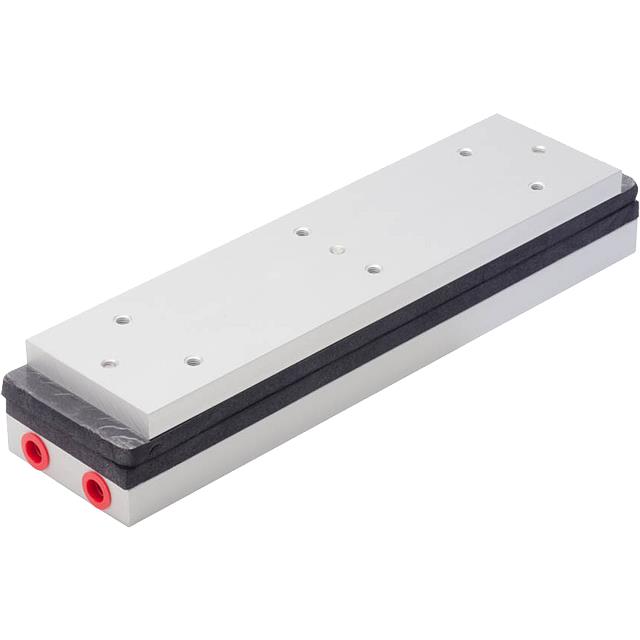

DL-210-24-00-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-LIQ 207W
Deep-Dive with AI
Search across all available documentation for this part.
DL-210-24-00-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-LIQ 207W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DL-210-24-00-00-00 |
|---|---|
| Current | 8.1 A |
| Dimensions - Overall [x] | 240 mm |
| Dimensions - Overall [y] | 60 mm |
| Dimensions - Overall [z] | 39 mm |
| Heat Transfer Type | Direct to Liquid |
| Operating Temperature [Max] | 62 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 207 W |
| Power - Input | 194 W |
| Voltage | 24 V |
| Weight | 2.9 lbs |
| Weight | 1.3 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 534.09 | |
| 5 | $ 500.71 | |||
| 10 | $ 487.36 | |||
Description
General part information
DL-210-24 Series
Direct to Liquid Thermoelectric Assembly 207 W
