357-028-458-102
ActiveEDAC Inc.

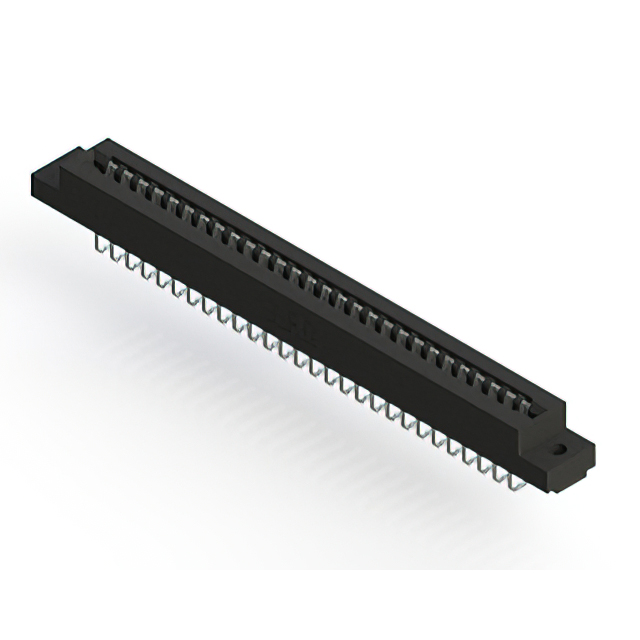

CONN EDGE SGL FML 28POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
357-028-458-102
ActiveEDAC Inc.
CONN EDGE SGL FML 28POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 357-028-458-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
357-028 Series
...
| Part | Termination Rows | Termination | Contact Type | Material - Insulation | Pitch [x] | Pitch [x] | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Contact Material | Gender | Mounting Type | Color | Number of Positions | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Card Type | Contact Finish | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | Solder | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | Female | Through Hole | Black | 28 | 2 | 10 Áin | 0.25 Ám | 14 | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 1 | Wire Wrap | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Female | Through Hole | Black | 56 | 2 | 10 Áin | 0.25 Ám | 28 | Non Specified - Dual Edge | Gold | Card Guides | ||
EDAC Inc. | 2 | Solder | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Copper Alloy | Female | Through Hole | Black | 28 | 2 | 14 | Non Specified - Dual Edge | Tin | |||
EDAC Inc. | 1 | Solder Eyelet(s) | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Copper Alloy | Female | Through Hole | Black | 56 | 2 | 28 | Non Specified - Dual Edge | Tin | |||
EDAC Inc. | 1 | Wire Wrap | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | Female | Through Hole | Black | 28 | 1 | 28 | Non Specified - Single Edge | Tin | |||
EDAC Inc. | 1 | Solder Eyelet(s) | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Female | Through Hole | Black | 56 | 2 | 10 Áin | 0.25 Ám | 28 | Non Specified - Dual Edge | Gold | |||
EDAC Inc. | 2 | Solder | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Female | Board Edge Straddle Mount | Black | 28 | 2 | 10 Áin | 0.25 Ám | 14 | Non Specified - Dual Edge | Gold | Card Extender | ||
EDAC Inc. | 1 | Solder | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Copper Alloy | Female | Through Hole Right Angle | Black | 28 | 1 | 28 | Non Specified - Single Edge | Tin | |||
EDAC Inc. | 2 | Solder | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Copper Alloy | Female | Through Hole Right Angle | Black | 28 | 2 | 10 Áin | 0.25 Ám | 14 | Non Specified - Dual Edge | Gold | |
EDAC Inc. | 2 | Wire Wrap | Semi Bellows | Polyester Thermoplastic | 0.156 in | 3.96 mm | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Female | Through Hole | Black | 28 | 2 | 10 Áin | 0.25 Ám | 14 | Non Specified - Dual Edge | Gold | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 15.88 | |
Description
General part information
357-028 Series
28 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
