0198082009

Active

Molex

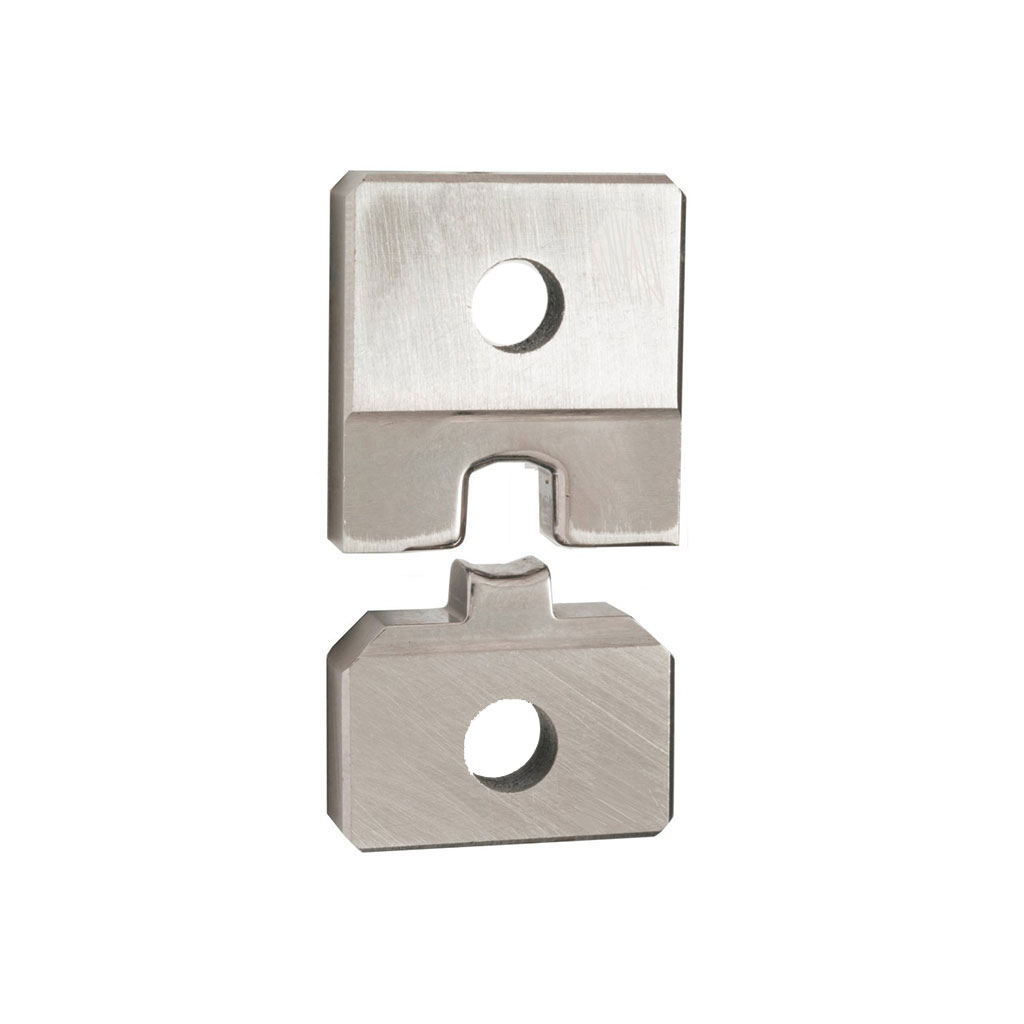

DIE SET 2 22-18 PERMA-S ATP

Search across all available documentation for this part.

Active

Molex

DIE SET 2 22-18 PERMA-S ATP

Technical Specifications

Parameters and characteristics for this part

Specification	0198082009

Compatible Tools	19228-0030
For Use With/Related Products	Terminals
For Use With/Related Products [Max]	20 AWG
For Use With/Related Products [Min]	18 AWG
Tool Type	Die Set

Part	Tool Type	Compatible Tools	For Use With/Related Products [Max]	For Use With/Related Products [Min]	For Use With/Related Products
Molex 0198082009	Die Set	19228-0030	20 AWG	18 AWG	Terminals
Molex 0198082003
Molex 0198082025	Die Set	19228-0030 19248-0050	12 AWG	10 AWG	Terminals
Molex 0198085131
Molex 0198082012	Die Set	19228-0030 19248-0050	16 AWG	14 AWG	Terminals
Molex 0198085020
Molex 0198085021
Molex 0198085061
Molex 0198082002
Molex 0198085041

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 442.33

General part information

Tool Die Set For Terminals, 18-20 AWG

Technical documentation and resources

No documents available
