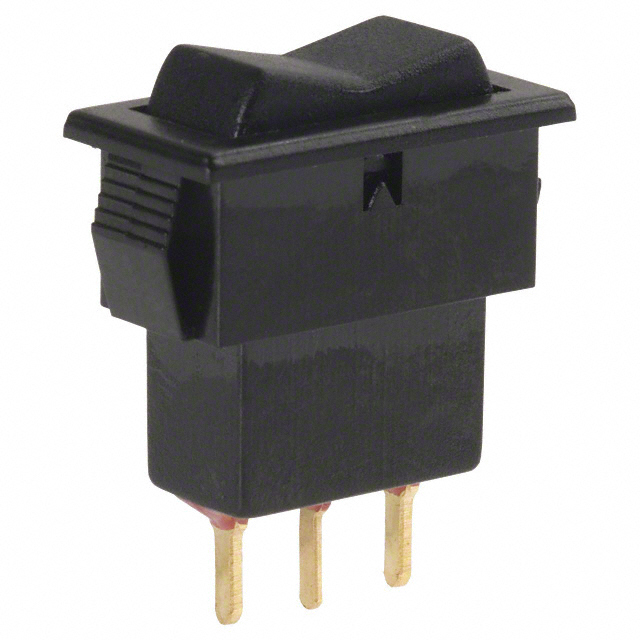

AS39P0000
ObsoleteAPEM
SWITCH ROCKER SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS39P0000
ObsoleteAPEM
SWITCH ROCKER SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS39P0000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | UL |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [x] | 18.65 mm |
| Panel Cutout Dimensions [y] | 8.9 mm |
| Switch Function | On-Off-On |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.39 | |
| 10 | $ 6.38 | |||
| 25 | $ 6.02 | |||
Description
General part information
AS39P0 Series
Rocker Switch SPDT 0.4VA (AC/DC) 20 V Panel Mount, Snap-In
