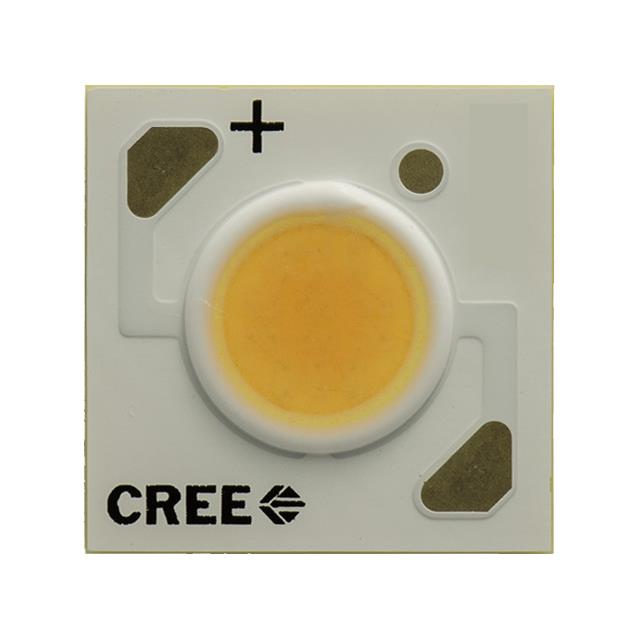

CXB1304-0000-00PC0U0A50G

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXB1304-0000-00PC0U0A50G

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB1304-0000-00PC0U0A50G

Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	1 A
Current - Test	400 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	6 mm Dia
Size / Dimension [x]	13.35 mm
Size / Dimension [y]	13.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	8.45 V

CXB1304 Series

...

Part	CCT (K)	Configuration	Height [z]	Temperature - Test	Type	Lens Type	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	CRI (Color Rendering Index)	Current - Test	Current - Max [Max]	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test
Cree LED CXB1304-0000-000F0UB227G	2700 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Warm White	17.3 V	115 °	90	200 mA	500 mA	395 lm	6 mm Dia	114 lm/W
Cree LED CXB1304-0000-000C0BC465E	6500 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Cool White	9 V	115 °	70	400 mA	1 A	493 lm	6 mm Dia	137 lm/W
Cree LED CXB1304-0000-000C0UC240G	4000 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Neutral White	8.6 V	115 °	90	400 mA	1 A	458 lm	6 mm Dia	133 lm/W
Cree LED CXB1304-0000-000C0HB427H	2700 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Warm White	9 V	115 °	80	400 mA	1 A	425 lm	6 mm Dia	118 lm/W
Cree LED CXB1304-0000-000C0ZB2L5A	4000 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Neutral White	9 V	115 °	95	400 mA	1 A	402 lm	6 mm Dia	112 lm/W
Cree LED CXB1304-0000-000F0UB440H	4000 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Neutral White	18 V	115 °	90	200 mA	500 mA	425 lm	6 mm Dia	118 lm/W
Cree LED CXB1304-0000-00PF0Z0A35H	3500 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Warm White	16.9 V	115 °	95	200 mA	500 mA	427 lm	6 mm Dia	126 lm/W
Cree LED CXB1304-0000-000C0UB450G		Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Cool White	9 V	115 °	90	400 mA	1 A	425 lm	6 mm Dia	118 lm/W
Cree LED CXB1304-0000-00PC0U0A30U	3000 K	Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Warm White	8.45 V	115 °	90	400 mA	1 A	475 lm	6 mm Dia	141 lm/W
Cree LED CXB1304-0000-00PC0U0A50G		Square	1.7 mm	85 °C	Chip On Board (COB)	Flat	13.35 mm	13.35 mm	Cool White	8.45 V	115 °	90	400 mA	1 A		6 mm Dia

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 2.35

Description

General part information

CXB1304 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXB1304 White, Cool Square

Documents

Technical documentation and resources
