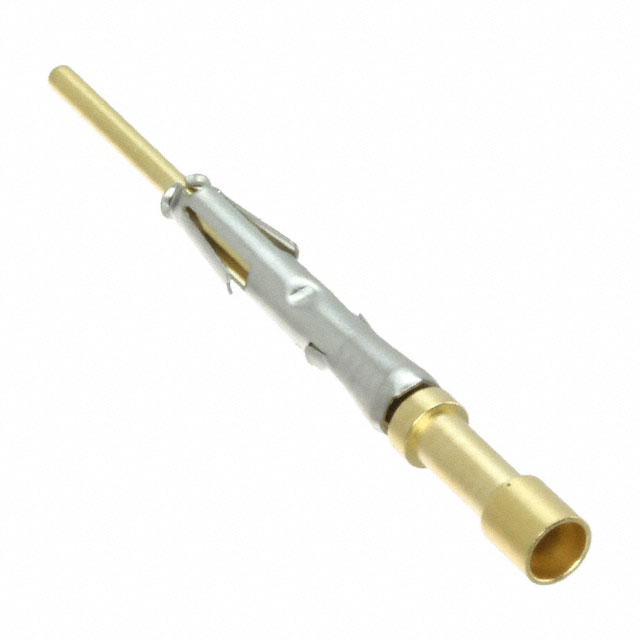

RM18W3K
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 18-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RM18W3K
ActiveSouriau-Sunbank by Eaton
CONTACT PIN 18-20AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RM18W3K |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
| Wire Gauge or Range - mm² [Max] [custom] | 0.82 mm² |
| Wire Gauge or Range - mm² [Min] [custom] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.56 | |
| 50 | $ 2.09 | |||
| 100 | $ 1.99 | |||
| 1000 | $ 1.42 | |||
| 5000 | $ 1.26 | |||
Description
General part information
RM18W Series
Pin Contact 18-20 AWG Size 20 Crimp Gold
Documents
Technical documentation and resources
