1.30.070.251/0400

Active

RAFI USA

CONFIG SW BODY PUSHBUT NON-ILLUM

Search across all available documentation for this part.

Active

RAFI USA

CONFIG SW BODY PUSHBUT NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	1.30.070.251/0400

(Select First, Then Apply Filters) Compatible Series	Rafix 16
Actuator Type	Pushbutton, Square
Illumination	Non-Illuminated
Panel Cutout Dimensions	16.2 mm
Requires	Contact Block(s)

Part	Actuator Type	(Select First, Then Apply Filters) Compatible Series	Requires	Illumination	Panel Cutout Dimensions
RAFI USA 1.30.070.001/1505	Pushbutton Square	Rafix 16	Contact Block(s) Illumination Source	Illuminated - Green	16.2 mm
RAFI USA 1.30.070.271/0300	Pushbutton Round	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm
RAFI USA 1.30.070.251/0400	Pushbutton Square	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm
RAFI USA 1.30.070.251/0100	Pushbutton Square	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm
RAFI USA 1.30.070.071/1306	Pushbutton Round	Rafix 16	Contact Block(s) Illumination Source		16.2 mm
RAFI USA 1.30.070.221/1002
RAFI USA 1.30.070.026/1306	Pushbutton Round	Rafix 16	Contact Block(s) Illumination Source		16.2 mm
RAFI USA 1.30.070.051/1002	Pushbutton Square	Rafix 16	Contact Block(s) Illumination Source	Illuminated - Clear	16.2 mm
RAFI USA 1.30.070.071/1002	Pushbutton Round	Rafix 16	Contact Block(s) Illumination Source	Illuminated - Clear	16.2 mm
RAFI USA 1.30.070.271/0200	Pushbutton Round	Rafix 16	Contact Block(s)	Non-Illuminated	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 12.38

General part information

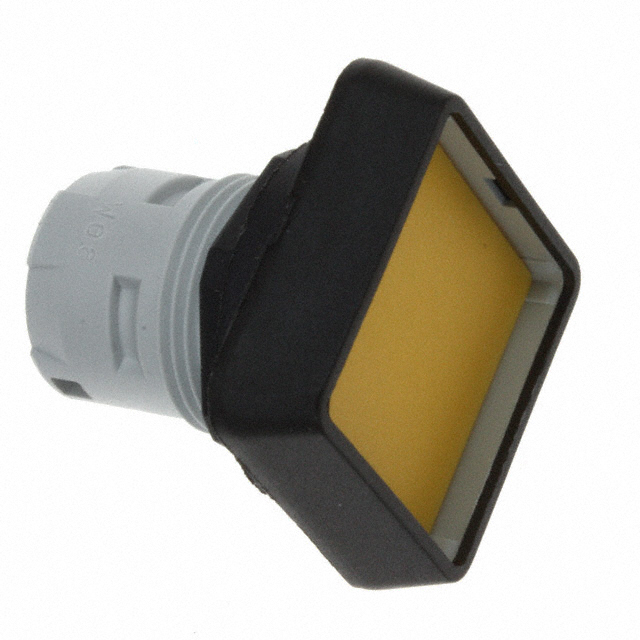

Configurable Switch Body Pushbutton, Square Non-Illuminated
