10M08DAF484C8GES

Unknown

Altera

IC FPGA 250 I/O 484FBGA

Search across all available documentation for this part.

Unknown

Altera

IC FPGA 250 I/O 484FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	10M08DAF484C8GES

Mounting Type	Surface Mount
Number of I/O	250
Number of LABs/CLBs	500
Number of Logic Elements/Cells	8000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C

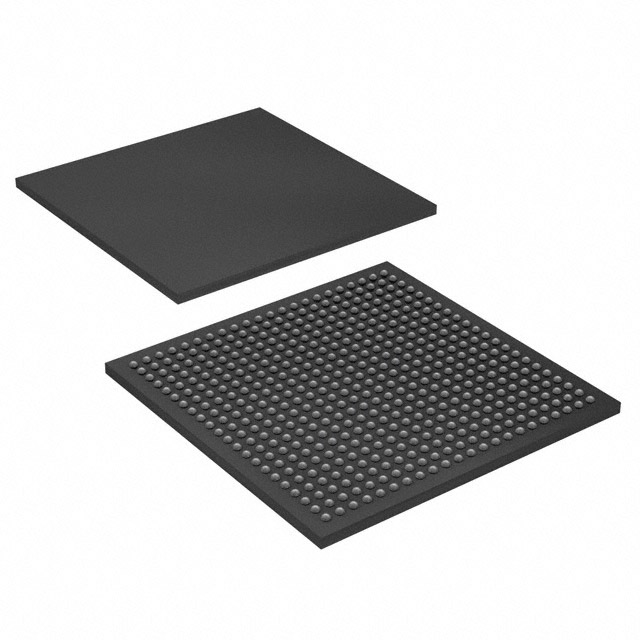

Package / Case	484-BGA
Supplier Device Package	484-FBGA (23x23)
Total RAM Bits	387072

Part	Number of LABs/CLBs	Number of Logic Elements/Cells	Number of I/O	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Total RAM Bits	Mounting Type	Package / Case
Altera 10M08DAF484C8GES	500	8000	250	484-FBGA (23x23)	0 °C	85 °C	387072	Surface Mount	484-BGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

MAX® 10 Field Programmable Gate Array (FPGA) IC 250 387072 8000 484-BGA

Technical documentation and resources
