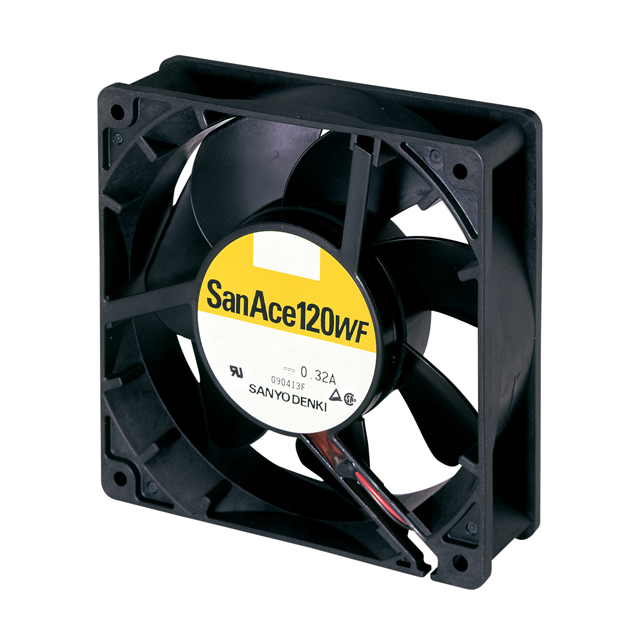

9WF1224H102

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Sanyo Denki America Inc.

FAN AXIAL 119X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Weight	Weight	Air Flow	Air Flow	Approval Agency	Lifetime @ Temp.	Voltage - Rated	RPM	Noise	Material - Frame	Material - Blade	Static Pressure	Static Pressure	Current Rating (Amps)	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Width [y]	Ingress Protection	Bearing Type	Features
Sanyo Denki America Inc. 9WF1224H102	0.784 lb	355.62 g	118 CFM	3.3 m³/min	CSA TUV UL	40000 Hrs	24 VDC	3100 RPM	46 dB(A)	Plastic	Plastic	0.4 in H2O	99.6 Pa	320 mA	7.68 W	119 mm	119 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	2 Wire Leads	38 mm	Oil Resistant	Ball
Sanyo Denki America Inc. 9WF1224H101	0.784 lb	355.62 g	118 CFM	3.3 m³/min	CSA TUV UL	40000 Hrs	24 VDC	3100 RPM	46 dB(A)	Plastic	Plastic	0.4 in H2O	99.6 Pa	320 mA	7.68 W	119 mm	119 mm	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	3 Wire Leads	38 mm		Ball	Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	21	$ 48.23

General part information

Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 118.0 CFM (3.30mł/min) 2 Wire Leads
