149-0701-601

Active

Cinch Connectivity Solutions Johnson

1.0MM FEMALE PANEL END LAUNCH -

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

1.0MM FEMALE PANEL END LAUNCH -

Technical Specifications

Parameters and characteristics for this part

Specification	149-0701-601

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1 mm
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware
Frequency - Max [Max]	110 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.7 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	150 VDC

Part	Features	Center Contact Plating	Mounting Feature	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Dielectric Material	Impedance	Body Material	Shield Termination	Housing Color	Center Contact Material	Frequency - Max [Max]	Connector Style	Number of Ports	Contact Termination	Mating Cycles
Cinch Connectivity Solutions Johnson 149-0701-601	Mounting Hardware	Gold	Flange	150 VDC	Female Socket Jack	-65 ░C	165 °C	0.7 dB	Polytetrafluoroethylene (PTFE)	50 Ohms	Stainless Steel	Screw	Silver	Beryllium Copper	110 GHz	1 mm	1	Solder	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

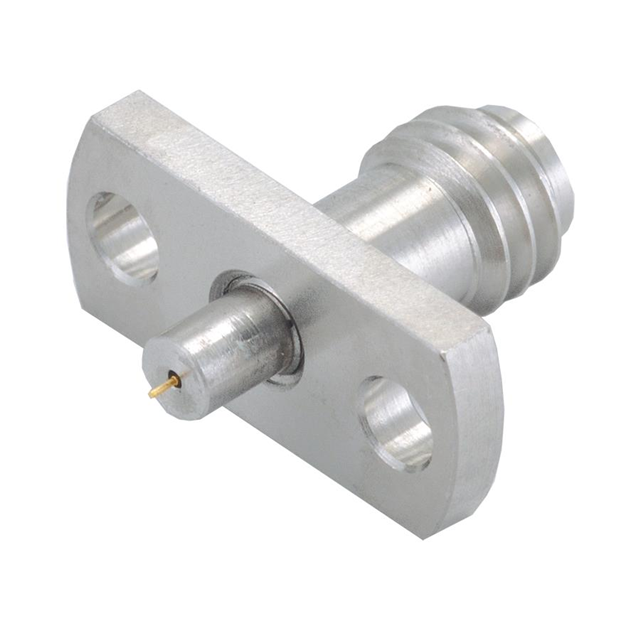

1.0mm Connector Jack, Female Socket 50 Ohms Panel Mount Solder
