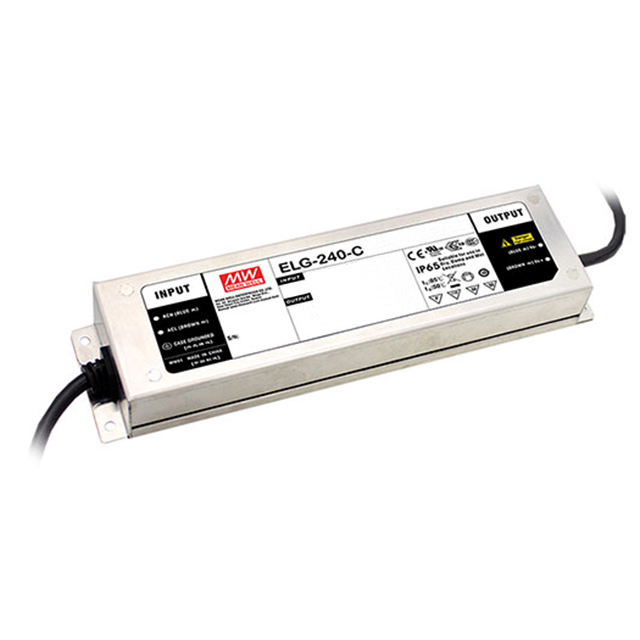

ELG-240-C1750B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 69-137V 1.75A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELG-240-C1750B

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 69-137V 1.75A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELG-240-C1750B

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	1.75 A
Dimming	Analog, PWM
Efficiency	93 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	240 W
Ratings	IP67
Size / Dimension [x]	8.66 "
Size / Dimension [x]	220 mm
Size / Dimension [y]	2.8 in
Size / Dimension [y]	71 mm
Size / Dimension [z]	1.48 "
Size / Dimension [z]	37.5 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	137 V
Voltage - Output [Min]	69 V

ELG-240 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Termination Style	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Topology	Power (Watts)	Features	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Ratings	Dimming	Voltage - Output
MEAN WELL USA Inc. ELG-240-C700-3Y	85 °C	-40 °C	Constant Current	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	700 mA	AC DC Converter	180 W	OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus EAC ENEC KC RCM	305 VAC	343 V	172 V	IP67
MEAN WELL USA Inc. ELG-240-C1400	85 °C	-40 °C	Constant Current	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	1.4 A	AC DC Converter	239 W	OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus ENEC	305 VAC	171 V	86 V	IP67
MEAN WELL USA Inc. ELG-240-C1750B	85 °C	-40 °C	Constant Current	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	1.75 A	AC DC Converter	240 W	OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus ENEC	305 VAC	137 V	69 V	IP67	Analog PWM
MEAN WELL USA Inc. ELG-240-C1050AB	85 °C	-40 °C	Constant Current	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	1.05 A	AC DC Converter	180 W	OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus EAC ENEC KC RCM	305 VAC	228 V	114 V	IP65
MEAN WELL USA Inc. ELG-240-C2100DA	85 °C	-40 °C	Constant Current	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	2.1 A	AC DC Converter	242 W	OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus EAC ENEC RCM	305 VAC	115 V	57 V	IP67
MEAN WELL USA Inc. ELG-240-48B	90 °C	-40 °C	Constant Current Voltage	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	5 A	AC DC Converter	240 W	OCP OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus ENEC	305 VAC			IP67	Analog PWM	48 V
MEAN WELL USA Inc. ELG-240-C700DA	85 °C	-40 °C	Constant Current	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	700 mA	AC DC Converter	180 W	OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus EAC ENEC KC RCM	305 VAC	343 V	172 V	IP67
MEAN WELL USA Inc. ELG-240-42A	90 °C	-40 °C	Constant Current Voltage	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	5.71 A	AC DC Converter	240 W	OCP OTP OVP SCP	100 VAC	92.5 %	3750 V	CB CCC CE cURus ENEC	305 VAC			IP65	PWM	42 V
MEAN WELL USA Inc. ELG-240-54-3Y	90 °C	-40 °C	Constant Current Voltage	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	4.45 A	AC DC Converter	240 W	OCP OTP OVP SCP	100 VAC	93 %	3750 V	CB CCC CE cURus EAC ENEC KC RCM	305 VAC			IP67		54 V
MEAN WELL USA Inc. ELG-240-24DA	90 °C	-40 °C	Constant Current Voltage	8.66 "	220 mm	1.48 "	2.8 in	71 mm	37.5 mm	Wire Leads	Chassis Mount	1	10 A	AC DC Converter	240 W	OCP OTP OVP SCP	100 VAC	92 %	3750 V	CB CCC CE cURus ENEC	305 VAC			IP67	DALI	24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 57.56
		5	$ 53.36
		10	$ 51.65
		25	$ 49.47

Description

General part information

ELG-240 Series

1.75A 69 ~ 137V Constant Current LED Driver AC DC Converter Topology 1 Output
