346-017-500-612
ActiveEDAC Inc.

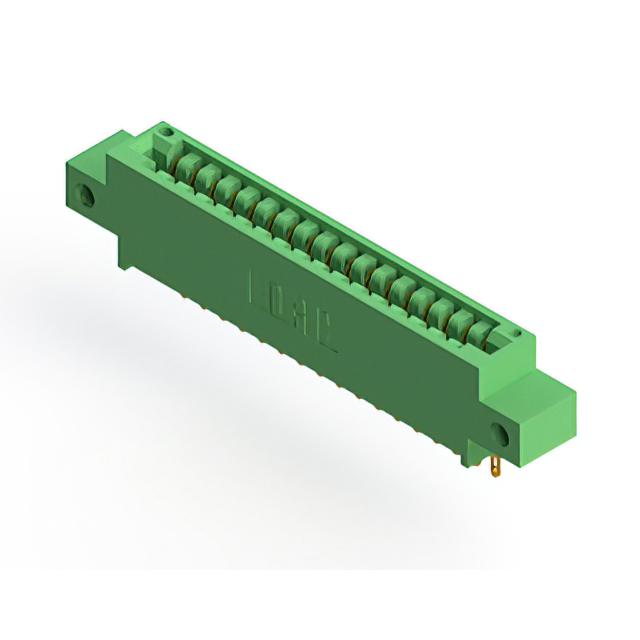

CARD EDGE CONNECTOR, 17 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, HOLE .125-.137, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-017-500-612
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 17 CONTACT(S), 1 ROW(S), FEMALE, 0.125 INCH PITCH, HOLE .125-.137, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-017-500-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
346-017 Series
| Part | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Color | Gender | Card Type | Termination Rows | Contact Type | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Mounting Type | Number of Rows | Contact Material | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | |||
EDAC Inc. | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole Right Angle | 1 | Copper Alloy | |||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | Card Guides | ||||
EDAC Inc. | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | |||
EDAC Inc. | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | |||
EDAC Inc. | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | |||||
EDAC Inc. | Side Mount Opening Unthreaded | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | Side Mount Opening Unthreaded | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Gold | Green | Female | Non Specified - Single Edge | 1 | Cantilever | 0.125 in | 3.18 mm | -40 °C | 105 ░C | Polyester Thermoplastic | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Single | Through Hole | 1 | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.39 | |
Description
General part information
346-017 Series
17 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
Documents
Technical documentation and resources
