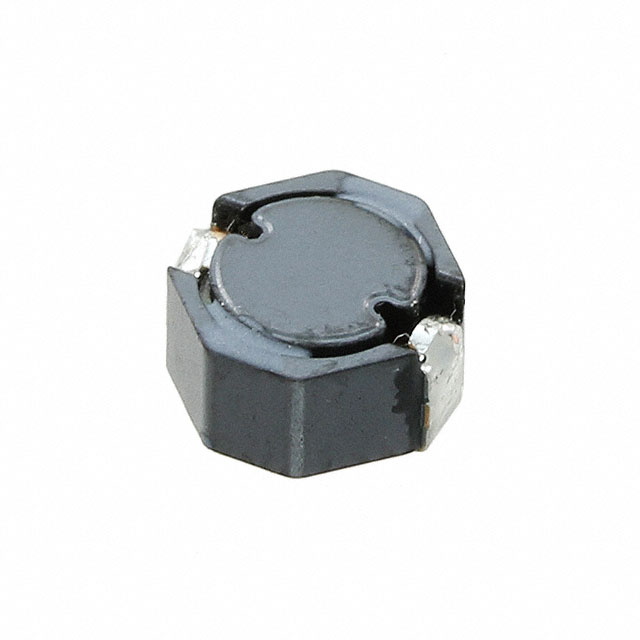

#A915AY-100M=P3
ActiveMurata Power Solutions Inc.
FIXED IND 10UH 1.41A 0.09OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
#A915AY-100M=P3
ActiveMurata Power Solutions Inc.
FIXED IND 10UH 1.41A 0.09OHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | #A915AY-100M=P3 |
|---|---|
| Current - Saturation (Isat) | 1.33 A |
| Current Rating (Amps) | 1.41 A |
| DC Resistance (DCR) [Max] | 90 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2020 |
| Package / Case | 5050 Metric |
| Shielding | Shielded |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Supplier Device Package | 2020 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.61 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.61 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.51 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2000 | $ 0.33 | ||
| 4000 | $ 0.32 | |||
| 6000 | $ 0.31 | |||
| 10000 | $ 0.30 | |||
Description
General part information
A915AY Series
10 µH Shielded Drum Core, Wirewound Inductor 1.41 A 90mOhm Max 2020 (5050 Metric)
