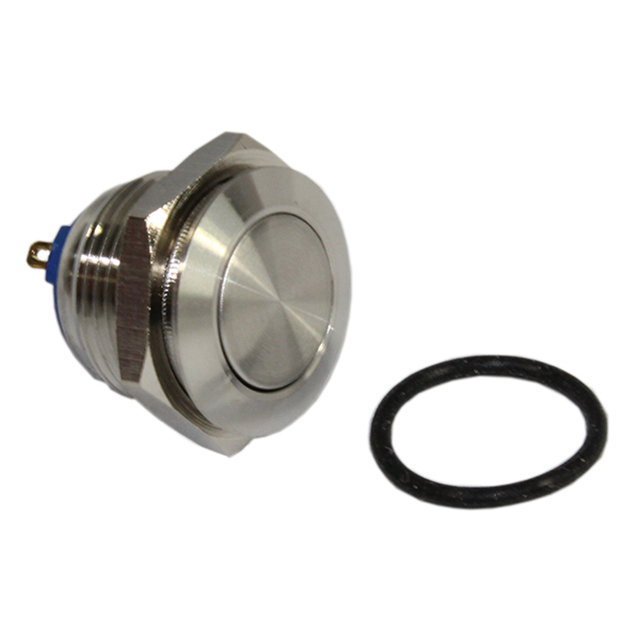

BH16NFSBX

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	BH16NFSBX

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A, 1 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

Part	Actuator Marking	Termination Style	Current Rating (Amps)	Features	Mounting Type	Ingress Protection	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Electrical Life	Switch Function	Type	Panel Cutout Dimensions [diameter]	Circuit	Voltage Rating - DC	Voltage Rating - AC
CIT Relay and Switch BH16NFSBX	No Marking	Solder Lug	1 A 2 A	Stainless Steel	Panel Mount Front	IP67 - Dust Tight Waterproof	Button Flush Round	55 °C	-25 °C	Silver	50000 Cycles	Off-Mom	Anti-Vandal	16 mm	SPST	36 VDC	125 V
CIT Relay and Switch BH16NFBBX	No Marking	Solder Lug	1 A 2 A		Panel Mount Front	IP67 - Dust Tight Waterproof	Button Flush Round	55 °C	-25 °C	Black	50000 Cycles	Off-Mom	Anti-Vandal	16 mm	SPST	36 VDC	125 V
CIT Relay and Switch BH16NFSZX	No Marking	Screw Terminal	1 A 2 A		Panel Mount Front	IP67 - Dust Tight Waterproof	Button Flush Round	55 °C	-25 °C	Silver	50000 Cycles	Off-Mom	Anti-Vandal	16 mm	SPST-NO	36 VDC	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Anti-Vandal Panel Mount, Front
