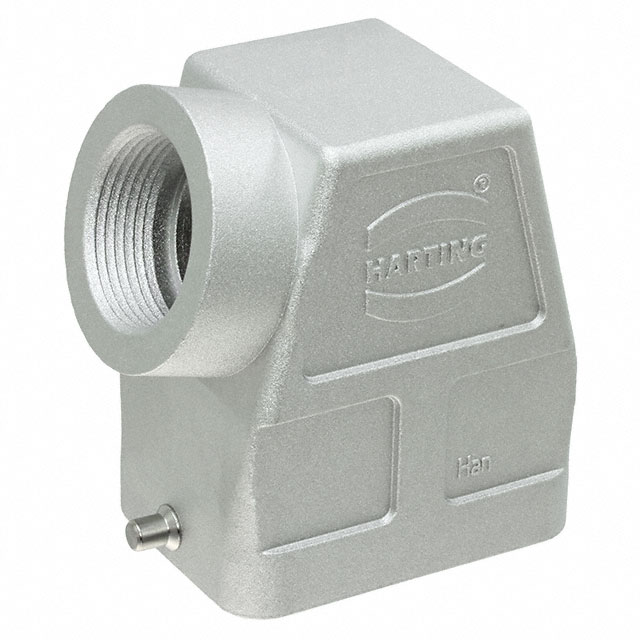

CONN HOOD SIDE ENTRY SZ6B PG21

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

CONN HOOD SIDE ENTRY SZ6B PG21

Technical Specifications

Parameters and characteristics for this part

Specification	09628060542

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	60 mm
Size / Dimension [x]	2.362 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	72 mm
Size / Dimension [z]	2.835 in
Style	Side Entry
Thread Size	PG21

Part	Size	Thread Size	Ingress Protection	Style	Housing Material	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location
HARTING Technology Group 09628060542	6B	PG21	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Hood	1.693 in	72 mm	60 mm	2.362 in	2.835 in	43 mm	125 °C	-40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 09628060543	6B	PG29		Side Entry		Hood	1.693 in	72 mm	60 mm	2.362 in	2.835 in	43 mm			Locking Clip (1) on Base Bottom
HARTING Technology Group 09628060392	6B		IP66	Bottom Entry	Aluminum Die Cast	Base - Panel Mount	2.126 in	35.7 mm	85 mm	3.346 in	1.406 "	54 mm	125 °C	-40 °C	Locking Clip (1) on Base Bottom
HARTING Technology Group 09628060315	6B		IP66	Bottom Entry	Aluminum Die Cast	Base - Panel Mount	2.126 in	35.7 mm	85 mm	3.346 in	1.406 "	54 mm	125 °C	-40 °C	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.68

General part information

Hood Connector Side Entry PG21 6B IP65 - Dust Tight, Water Resistant
