A22NK-3MM-01GA-G101

Active

Omron Electronics Inc-EMC Div

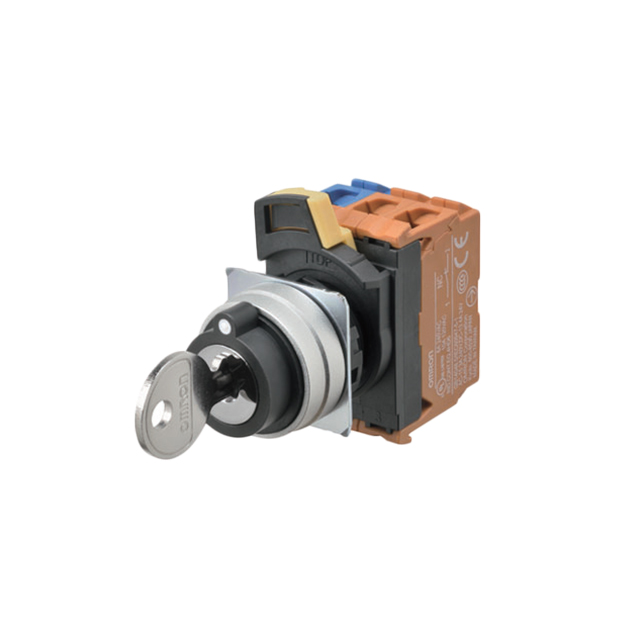

SWITCH KEYLCK 3POS DPST 10A 120V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH KEYLCK 3POS DPST 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	A22NK-3MM-01GA-G101

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	DPST-NO
Contact Timing	Not Specified
Current Rating (Amps)	8 A, 10 A
Depth Behind Flange	45.3 mm
Electrical Life	300000 Cycles
Features	IP66
Key Removable Positions	Left and Right
Mechanical Life	300000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	On-Off-Off, Off-Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

...

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Contact Timing	Voltage Rating - DC	Angle of Throw	Mechanical Life	Termination Style	Electrical Life	Actuator Type	Voltage Rating - AC	Depth Behind Flange	Switch Function	Number of Positions	Key Removable Positions	Panel Cutout Dimensions [diameter]	Current Rating (Amps)
Omron Electronics Inc-EMC Div A22NK-2RM-01BA-G100	IP66	70 °C	-25 °C	SPST-NO	Not Specified	24 V	90 °	500000 Cycles	Screw Terminal	500000 Cycles	Flat Key	120 V	45.3 mm	Off-On	2	Left	22.3 mm	8 A 10 A
Omron Electronics Inc-EMC Div A22NK-3RB-01DA-P202
Omron Electronics Inc-EMC Div A22NK-2ML-01BA-P101
Omron Electronics Inc-EMC Div A22NK-2BM-01AA-P101
Omron Electronics Inc-EMC Div A22NK-3BB-01DA-G102	IP66	70 °C	-25 °C	DPST-NO/NC	Not Specified	24 V	45 °	300000 Cycles	Screw Terminal	300000 Cycles	Flat Key	120 V	45.3 mm	Mom-Off-Mom Mom-On-Mom		Center	22.3 mm	8 A 10 A
Omron Electronics Inc-EMC Div A22NK-3MM-01GA-G101	IP66	70 °C	-25 °C	DPST-NO	Not Specified	24 V	45 °	300000 Cycles	Screw Terminal	300000 Cycles	Flat Key	120 V	45.3 mm	Off-Off-On On-Off-Off		Left and Right	22.3 mm	8 A 10 A
Omron Electronics Inc-EMC Div A22NK-3RB-01DA-P102
Omron Electronics Inc-EMC Div A22NK-3BM-01BA-G102	IP66	70 °C	-25 °C	DPST-NO/NC	Not Specified	24 V	45 °	300000 Cycles	Screw Terminal	300000 Cycles	Flat Key	120 V	45.3 mm	On-Off-Off On-On-Off		Left	22.3 mm	8 A 10 A
Omron Electronics Inc-EMC Div A22NK-2MM-01AA-P101
Omron Electronics Inc-EMC Div A22NK-2BL-01BA-P002

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.97

General part information

Keylock Switch 3 Position DPST-NO 10A (AC), 8A (DC) 120 VAC 24 VDC Panel Mount
