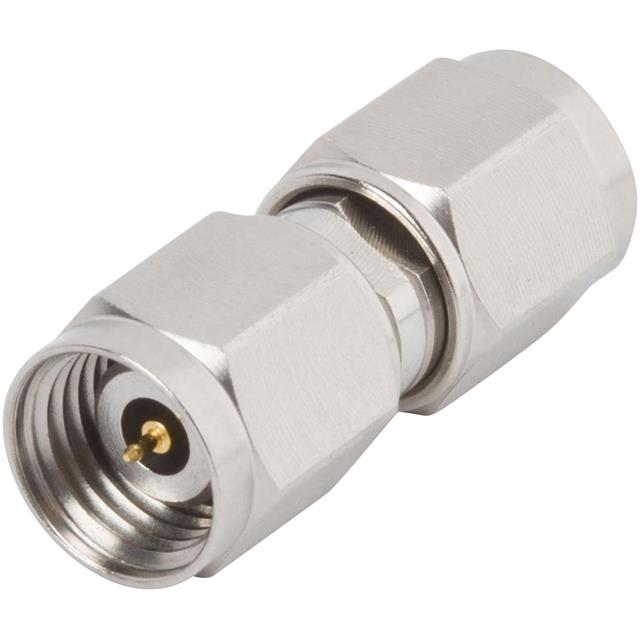

SF1593-6000
ActiveAmphenol SV Microwave
CONN ADAPT PLUG-PLUG 2.92MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF1593-6000 |
|---|---|
| Adapter Series [Max] | 2.92 mm |
| Adapter Series [Min] | 2.92 mm |
| Adapter Type | Plug to Plug |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 2.92 mm |
| Convert To (Adapter End) | 2.92mm (OS-2.9) Plug, Male Pin |
| Dielectric Material | Polyetherimide (PEI) |
| Frequency - Max [Max] | 40 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 115.88 | |
| 10 | $ 106.34 | |||
| 25 | $ 102.25 | |||
| 50 | $ 98.84 | |||
| 100 | $ 93.39 | |||
Description
General part information
SF1593 Series
Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 2.92mm (OS-2.9) Plug, Male Pin 50 Ohms
