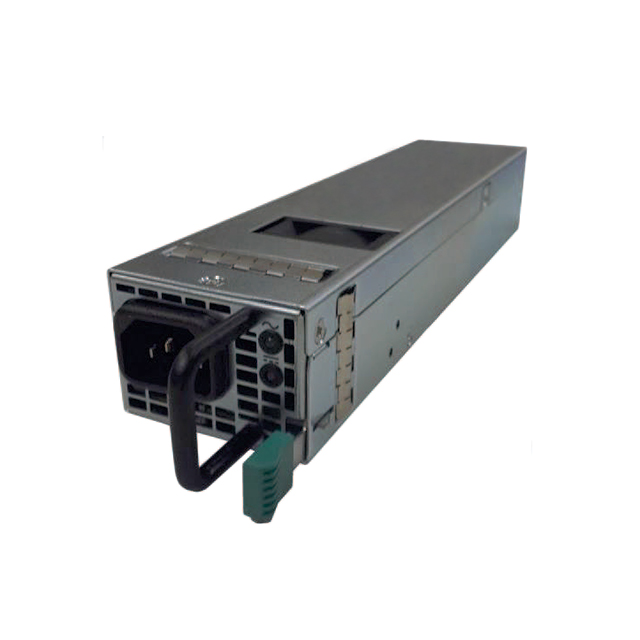

D1U54P-W-450-12-HB4C

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 450W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D1U54P-W-450-12-HB4C

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 12V 450W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D1U54P-W-450-12-HB4C

Applications	ITE (Commercial)
Approval Agency	cCSAus, BMSI, CE, TUV, CB, CQC
Current - Output 1	37.5 A
Efficiency	91 %
Features	PMBus™, I2C Interface, Remote Sense, PFC, Load Sharing, Universal Input, Remote On/Off, Standby Output, Hot Swappable
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-5 °C
Power (Watts)	450 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	2.15 "
Size / Dimension [y]	54.6 mm
Size / Dimension [z]	1.57 "
Size / Dimension [z]	39.9 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

D1U54P-W-1500-12-Hxx Series

Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR

Part	Mounting Type	Number of Outputs	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output 1	Approval Agency	Efficiency	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input [Min]	Voltage - Input [Max]
Murata Power Solutions Inc. D1U54P-W-450-12-HB4C	Rack Mount	1	3000 V	450 W	12 V	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	228.6 mm	1.57 "	2.15 "	39.9 mm	9 in	54.6 mm	37.5 A	BMSI CB cCSAus CE CQC TUV	91 %	Front End	50 °C	-5 °C	ITE (Commercial)	90 VAC	264 VAC
Murata Power Solutions Inc. D1U54P-W-1200-12-HA3PC	Rack Mount	1	3000 V	1200 W	12 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	322 mm	1.57 "	2.15 "	40 mm	12.65 in	54.5 mm	100 A		94 %	Front End	60 °C	0 °C	ITE (Commercial)	90 VAC	264 VAC
Murata Power Solutions Inc. D1U54P-W-1500-12-HA4TC	Rack Mount	1	3000 V	1500 W	12 V	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	321.5 mm	1.57 "	2.15 "	40 mm	12.66 in	54.5 mm	125 A	BSMI cCSAus CE CQC TUV	91 %	Front End	45 °C	-5 °C	ITE (Commercial)	90 VAC	264 VAC
Murata Power Solutions Inc. D1U54P-W-1200-12-HC4PC	Rack Mount	1	3000 V	1200 W	12 V	Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input	322 mm	1.57 "	2.15 "	40 mm	12.65 in	54.5 mm	100 A		94 %	Front End	60 °C	0 °C	ITE (Commercial)	90 VAC	264 VAC
Murata Power Solutions Inc. D1U54P-W-650-12-HB3C	Rack Mount	1	3000 V	650 W	12 V	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	228.6 mm	1.57 "	2.15 "	40 mm	9 in	54.5 mm	54.2 A	CB cCSAus CE TUV	94 %	Front End	50 °C	-5 °C	ITE (Commercial)	90 VAC	264 VAC
Murata Power Solutions Inc. D1U54P-W-1500-12-HA3TC	Rack Mount	1	3000 V	1500 W	12 V	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	321.5 mm	1.57 "	2.15 "	40 mm	12.66 in	54.5 mm	125 A	BSMI cCSAus CE CQC TUV	91 %	Front End	45 °C	-5 °C	ITE (Commercial)	90 VAC	264 VAC
Murata Power Solutions Inc. D1U54P-W-2000-12-HA4C	Rack Mount	1	3000 V	2000 W	12 V	Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	321.5 mm	1.57 "	2.15 "	40 mm	12.66 in	54.5 mm	166.7 A	CB cCSAus CE CQC TUV	94 %	Front End	50 °C	-5 °C	ITE (Commercial)	90 VAC	264 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 265.06

Description

General part information

D1U54P-W-1500-12-Hxx Series

Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR
