SIT1534AC-J5-D14-00.001E

Active

SiTime

MEMS OSC XO 1.0000HZ LVCMOS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturing Notes for SiTime Products

SIT1534AC-J5-D14-00.001E

Active

SiTime

MEMS OSC XO 1.0000HZ LVCMOS SMD

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT1534AC-J5-D14-00.001E

Base Resonator	MEMS
Current - Supply (Max) [Max]	1.3 µA
Frequency	1 Hz
Frequency Stability	75 ppm
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Mounting Type	Surface Mount
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C

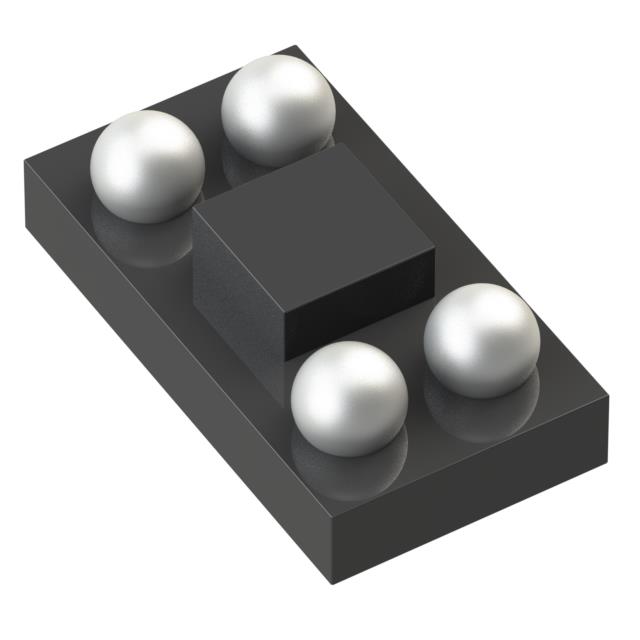

Package / Case	4-UFBGA, CSPBGA
Size / Dimension [x]	1.54 mm
Size / Dimension [x]	0.061 in
Size / Dimension [y]	0.84 mm
Size / Dimension [y]	0.033 in
Supplier Device Package	4-CSP (1.54x.84)
Type	XO (Standard)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.2 V

SIT1534 Series

Part	Type	Base Resonator	Voltage - Supply [Max]	Voltage - Supply [Min]	Output	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency	Frequency Stability	Package / Case	Current - Supply (Max) [Max]	Supplier Device Package	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
SiTime SIT1534AI-J4-DCC-00.032E	XO (Standard)	MEMS	3.63 V	1.2 V	LVCMOS	1.54 mm	0.84 mm	0.033 in	0.061 in	85 °C	-40 °C	Surface Mount	0.6 mm	0.024 in	32 Hz	100 ppm	4-UFBGA CSPBGA	1.4 µA
SiTime SIT1534AC-J5-D14-00.001E	XO (Standard)	MEMS	3.63 V	1.2 V		1.54 mm	0.84 mm	0.033 in	0.061 in			Surface Mount	0.6 mm	0.024 in	1 Hz	75 ppm	4-UFBGA CSPBGA	1.3 µA	4-CSP (1.54x.84)	-10 °C	158 °F
SiTime SIT1534AC-J5-DCC-00.256E	XO (Standard)	MEMS	3.63 V	1.2 V	LVCMOS	1.54 mm	0.84 mm	0.033 in	0.061 in			Surface Mount	0.6 mm	0.024 in	256 Hz	75 ppm	4-UFBGA CSPBGA	1.3 µA		-10 °C	158 °F
SiTime SIT1534AI-H4-DCC-04.096E	XO (Standard)	MEMS	3.63 V	1.5 V	LVCMOS	2 mm	1.2 mm	0.047 in	0.079 in	85 °C	-40 °C	Surface Mount	0.6 mm	0.024 in		100 ppm	4-SMD No Lead	1.4 µA
SiTime SIT1534AC-J5-DCC-00.064E	XO (Standard)	MEMS	3.63 V	1.2 V	LVCMOS	1.54 mm	0.84 mm	0.033 in	0.061 in			Surface Mount	0.6 mm	0.024 in	64 Hz	75 ppm	4-UFBGA CSPBGA	1.3 µA		-10 °C	158 °F
SiTime SIT1534AC-J5-DCC-00.001E	XO (Standard)	MEMS	3.63 V	1.2 V	LVCMOS	1.54 mm	0.84 mm	0.033 in	0.061 in			Surface Mount	0.6 mm	0.024 in	1 Hz	75 ppm	4-UFBGA CSPBGA	1.3 µA		-10 °C	158 °F
SiTime SIT1534AI-H4-DCC-00.002G	XO (Standard)	MEMS	3.63 V	1.5 V	LVCMOS	2 mm	1.2 mm	0.047 in	0.079 in	85 °C	-40 °C	Surface Mount	0.6 mm	0.024 in	2 Hz	100 ppm	4-SMD No Lead	1.4 µA
SiTime SIT1534AI-J4-DCC-00.016E	XO (Standard)	MEMS	3.63 V	1.5 V	LVCMOS	1.54 mm	0.84 mm	0.033 in	0.061 in	85 °C	-40 °C	Surface Mount	0.6 mm	0.024 in	16 Hz	100 ppm	4-UFBGA CSPBGA	1.4 µA
SiTime SIT1534AI-H4-DCC-04.096G	XO (Standard)	MEMS	3.63 V	1.5 V	LVCMOS	2 mm	1.2 mm	0.047 in	0.079 in	85 °C	-40 °C	Surface Mount	0.6 mm	0.024 in		100 ppm	4-SMD No Lead	1.4 µA
SiTime SIT1534AC-H5-DCC-00.001Q	XO (Standard)	MEMS	3.63 V	1.2 V	LVCMOS	2 mm	1.2 mm	0.047 in	0.079 in			Surface Mount	0.6 mm	0.024 in	32.768 kHz	75 ppm	4-SMD No Lead	1.3 µA		-10 °C	158 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.68
		10	$ 1.61
		50	$ 1.57
		100	$ 1.35
		500	$ 1.31
	Digi-Reel®	1	$ 1.68
		10	$ 1.61
		50	$ 1.57
		100	$ 1.35
		500	$ 1.31
	Tape & Reel (TR)	1000	$ 1.10
		3000	$ 1.05
		5000	$ 1.01
		10000	$ 0.99
