ALS70A562QW630

Active

KEMET

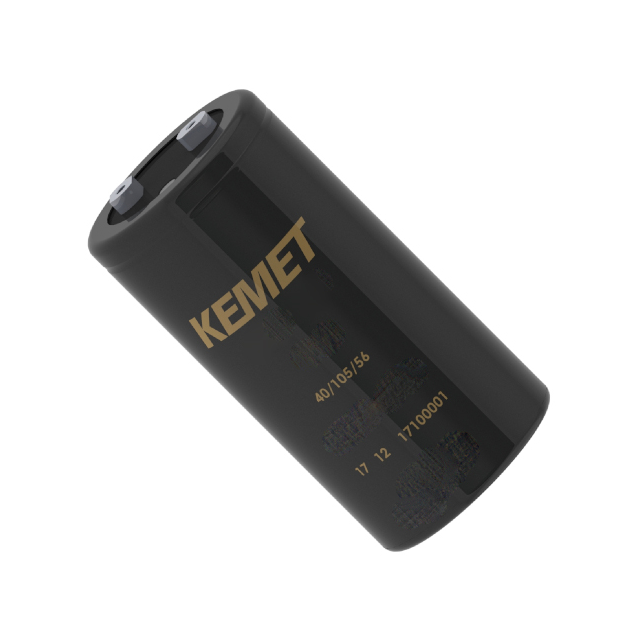

CAP ALUM 5600UF 20% 630V SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsALS70A562QW630 Spec KEM_A4075_ALS70_71.pdf +1

ALS70A562QW630

Active

KEMET

CAP ALUM 5600UF 20% 630V SCREW

Deep-Dive with AI

DocumentsALS70A562QW630 Spec KEM_A4075_ALS70_71.pdf +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALS70A562QW630

Applications	General Purpose
Capacitance	5.6 mF
ESR (Equivalent Series Resistance)	30.69 mOhm
Height - Seated (Max) [Max]	6.654 "
Height - Seated (Max) [Max]	169 mm
Impedance	21 mOhms
Lead Spacing	31.8 mm
Lead Spacing	1.252 in
Lifetime @ Temp.	20000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Ripple Current @ High Frequency	33.3 A
Ripple Current @ Low Frequency	21.5 A
Size / Dimension [diameter]	3.543 in
Size / Dimension [diameter]	90 mm
Tolerance	20 %
Voltage - Rated	630 V

ALS70A Series

...

Part	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Tolerance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Ripple Current @ High Frequency	Applications	Capacitance	Impedance	Package / Case	Ripple Current @ Low Frequency	Size / Dimension	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ALS70A103QP450	Chassis Mount	23 mOhm	3.543 in	90 mm	20000 Hrs	31.8 mm	1.252 in	20 %	450 V	148 mm	5.827 in	85 °C	-40 °C	Polar	31.1 A	General Purpose	10000 µF	16 mOhms	Radial Can - Screw Terminals	22.1 A
KEMET ALS70A473QS200	Chassis Mount	11 mOhm	3.543 in	90 mm	20000 Hrs	31.8 mm	1.252 in	20 %	200 V	196 mm	7.717 in	85 °C	-40 °C	Polar	37 A	General Purpose	47 mF	10 mOhms	Radial Can - Screw Terminals	31.9 A
KEMET ALS70A273QW250	Chassis Mount	14 mOhm	3.543 in	90 mm	20000 Hrs	31.8 mm	1.252 in	20 %	250 V	171 mm	6.732 in	85 °C	-40 °C	Polar	35 A	General Purpose	27000 µF	11 mOhms	Radial Can - Screw Terminals	28 A
KEMET ALS70A223NP200	Chassis Mount	20 mOhm	3.031 "	77 mm	20000 Hrs	31.8 mm	1.252 in	20 %	200 V	148 mm	5.827 in	85 °C	-40 °C	Polar	26.1 A	General Purpose	22000 µF	16 mOhms	Radial Can - Screw Terminals	21.6 A
KEMET ALS70A512MF400	Chassis Mount	36 mOhm	2.598 in		19000 Hrs	28.5 mm	1.122 in	20 %	400 V			85 °C	-40 °C	Polar	22.7 A	General Purpose	5.1 mF	22 mOhms	Radial Can - Screw Terminals	14 A	66 mm	107 mm	4.213 in
KEMET ALS70A103QM400	Chassis Mount	22 mOhm	3.543 in	90 mm	20000 Hrs	31.8 mm	1.252 in	20 %	400 V	133 mm	5.236 in	85 °C	-40 °C	Polar	29.8 A	General Purpose	10000 µF	14 mOhms	Radial Can - Screw Terminals	21.1 A
KEMET ALS70A562QW630	Chassis Mount	30.69 mOhm	3.543 in	90 mm	20000 Hrs	31.8 mm	1.252 in	20 %	630 V			85 °C	-40 °C	Polar	33.3 A	General Purpose	5.6 mF	21 mOhms	Radial Can - Screw Terminals	21.5 A		169 mm	6.654 "
KEMET ALS70A114KF040	Chassis Mount	14 mOhm	2.008 "	51 mm	18000 Hrs	22.2 mm	0.874 in	20 %	40 V			85 °C	-40 °C	Polar	21.4 A	General Purpose	110000 µF	13 mOhms	Radial Can - Screw Terminals	19.9 A		107 mm	4.213 in
KEMET ALS70A511DA400	Chassis Mount	304 mOhm	1.417 in	36 mm	11000 Hrs	12.8 mm	0.504 in	20 %	400 V	54 mm	2.126 in	85 °C	-40 °C	Polar	6.9 A	General Purpose	510 µF	172 mOhms	Radial Can - Screw Terminals	3.1 A
KEMET ALS70A822QH400	Chassis Mount	26 mOhm	3.543 in	90 mm	20000 Hrs	31.8 mm	1.252 in	20 %	400 V			85 °C	-40 °C	Polar	26.4 A	General Purpose		17 mOhms	Radial Can - Screw Terminals	18.4 A		100 mm	3.937 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 143.19
		16	$ 134.30
		56	$ 128.38

Description

General part information

ALS70A Series

5600 µF 630 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 30.69mOhm @ 100Hz 20000 Hrs @ 85°C

Documents

Technical documentation and resources

ALS70A562QW630 Spec

Datasheet

KEM_A4075_ALS70_71.pdf

Datasheet
