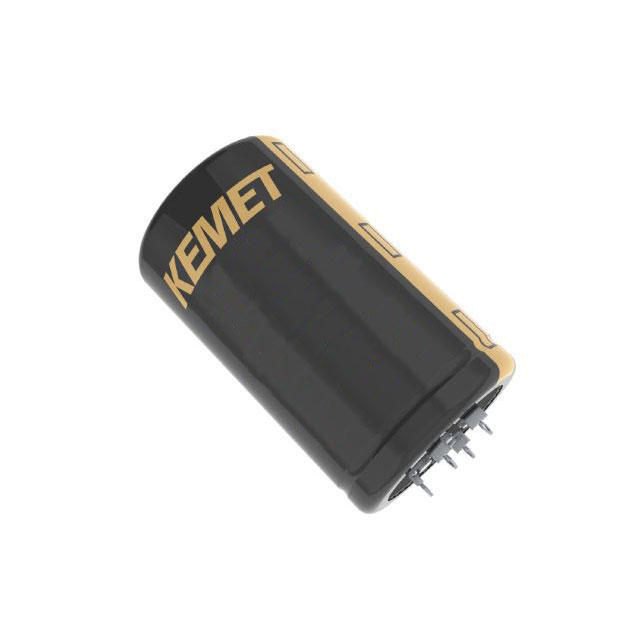

ALF40G271EC400

Active

KEMET

CAP ALUM 270UF 20% 400V PRESS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ALF40G271EC400

Active

KEMET

CAP ALUM 270UF 20% 400V PRESS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ALF40G271EC400

Applications	General Purpose
Capacitance	270 µF
ESR (Equivalent Series Resistance)	430 mOhm
Height - Seated (Max) [Max] [z]	37 mm
Height - Seated (Max) [Max] [z]	1.457 in
Impedance	266 mOhms
Lead Spacing	25 mm
Lead Spacing	0.984 "
Lifetime @ Temp.	9000 Hrs
Mounting Type	Through Hole, Press-Fit
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Press-Fit - 5 Lead
Polarization	Polar
Ripple Current @ Low Frequency	2.21 A
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Tolerance	20 %
Voltage - Rated	400 V

ALF40G Series

Part	Tolerance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Applications	Polarization	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Voltage - Rated	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Capacitance	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET ALF40G682KP200	20 %	Through Hole Press-Fit	107 mm	4.213 in	9.08 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	26 mOhms	200 V	25 mm	0.984 "	9000 Hrs	6800 µF	12.29 A	1.969 in	50 mm	36 mOhm
KEMET ALF40G182FP400	20 %	Through Hole Press-Fit	107 mm	4.213 in	6.48 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	55 mOhms	400 V	25 mm	0.984 "	9000 Hrs	1800 µF	12.04 A	1.772 in	45 mm	82 mOhm
KEMET ALF40G563EG025	20 %	Through Hole Press-Fit			7.51 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	35 mOhms	25 VDC	25 mm	0.984 "	9000 Hrs	56000 µF	7.61 A	1.575 "	40 mm	38 mOhm	57 mm	2.244 "
KEMET ALF40G271EC400	20 %	Through Hole Press-Fit			2.21 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	266 mOhms	400 V	25 mm	0.984 "	9000 Hrs	270 µF		1.575 "	40 mm	430 mOhm	37 mm	1.457 in
KEMET ALF40G681EL500	20 %	Through Hole Press-Fit			4.25 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	270 mOhms	500 V	25 mm	0.984 "	9000 Hrs	680 µF	8.14 A	1.575 "	40 mm	330 mOhm	82 mm	3.228 in
KEMET ALF40G681EB200	20 %	Through Hole Press-Fit			2.97 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	158 mOhms	200 V	25 mm	0.984 "	9000 Hrs	680 µF	3.67 A	1.575 "	40 mm	202 mOhm
KEMET ALF40G683EP040	20 %	Through Hole Press-Fit	107 mm	4.213 in	12.71 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	16 mOhms	40 V	25 mm	0.984 "	9000 Hrs	68000 µF	13.47 A	1.575 "	40 mm	17 mOhm
KEMET ALF40G102FP500	20 %	Through Hole Press-Fit	107 mm	4.213 in	5.52 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C		500 V	25 mm	0.984 "	9000 Hrs	1000 µF	10.08 A	1.772 in	45 mm	230 mOhm
KEMET ALF40G102EL350	20 %	Through Hole Press-Fit			5 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	78 mOhms	350 V	25 mm	0.984 "	9000 Hrs	1000 µF	9.98 A	1.575 "	40 mm	120 mOhm	82 mm	3.228 in
KEMET ALF40G152EF200	20 %	Through Hole Press-Fit			5.13 A	General Purpose	Polar	Radial Can - Press-Fit - 5 Lead	-40 °C	105 ░C	74 mOhms	200 V	25 mm	0.984 "	9000 Hrs	1.5 mF	6.23 A	1.575 "	40 mm		52 mm	2.047 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 5.82

Description

General part information

ALF40G Series

270 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Press-Fit - 5 Lead 430mOhm @ 100Hz 9000 Hrs @ 105°C
