B3F-1056

Active

Omron Electronics Inc-EMC Div

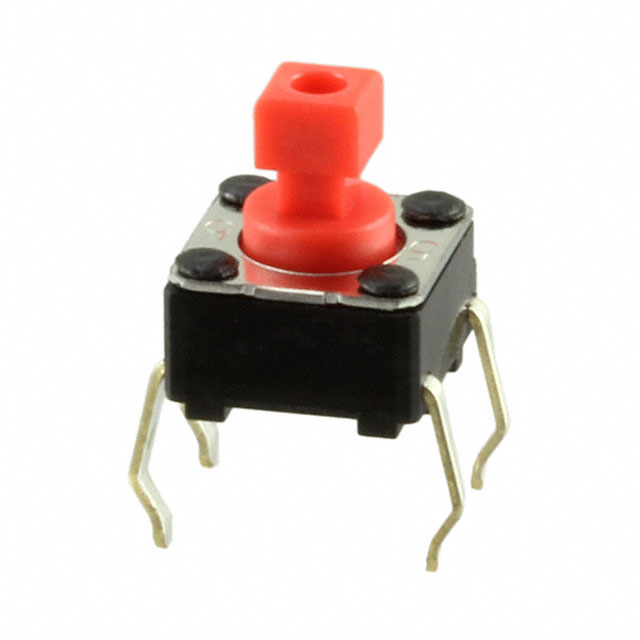

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasics of Tactile Switches Datasheet +2

B3F-1056

Active

Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsBasics of Tactile Switches Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	B3F-1056

Actuator Height off PCB, Vertical [z]	7.3 mm
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	0.5 kgf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

B3F Series

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Actuator Type	Mounting Type	Actuator Height off PCB, Vertical	Actuator Orientation	Contact Rating @ Voltage	Illumination	Switch Function	Switch Travel	Operating Force	Termination Style	Actuator Height off PCB, Vertical [z]	Mechanical Life	Features	Actuator Length, Right Angle	Switch Travel [custom]
Omron Electronics Inc-EMC Div B3F-1026	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Standard	Through Hole	5 mm	Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	0.5 kgf	PC Pin
Omron Electronics Inc-EMC Div B3F-1105	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Standard	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	260 gf	PC Pin	4.3 mm	100000 Cycles	Grounding Pin
Omron Electronics Inc-EMC Div B3F-1005	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Standard	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	260 gf	PC Pin	4.3 mm	100000 Cycles
Omron Electronics Inc-EMC Div B3F-3122	SPST-NO	70 °C	-25 °C	6.25 mm	7.3 mm	Standard	Through Hole Right Angle		Side Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	150 gf	PC Pin		300000 Cycles	Grounding Pin	3.85 mm
Omron Electronics Inc-EMC Div B3F-1056	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Plunger for Cap	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	0.5 kgf	PC Pin	7.3 mm
Omron Electronics Inc-EMC Div B3F-1000	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Standard	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	100 gf	PC Pin	4.3 mm	1000000 Cycles
Omron Electronics Inc-EMC Div B3F-1060	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Standard	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	100 gf	PC Pin	7 mm	1000000 Cycles
Omron Electronics Inc-EMC Div B3F-5101	SPST-NO	70 °C	-25 °C	12 mm	12 mm	Standard	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom		130 gf	PC Pin	4.3 mm	10000000 Cycles	Grounding Pin		0.3 mm
Omron Electronics Inc-EMC Div B3F-1150	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Plunger for Cap	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom	0.25 mm	100 gf	PC Pin	7.3 mm	1000000 Cycles	Grounding Pin
Omron Electronics Inc-EMC Div B3F-1000-S	SPST-NO	70 °C	-25 °C	6 mm	6 mm	Standard	Through Hole		Top Actuated	0.05 A 24 VDC	Non-Illuminated	Off-Mom		100 gf	PC Pin		1000000 Cycles
