5182-3SG-530

Active

Conxall/Switchcraft

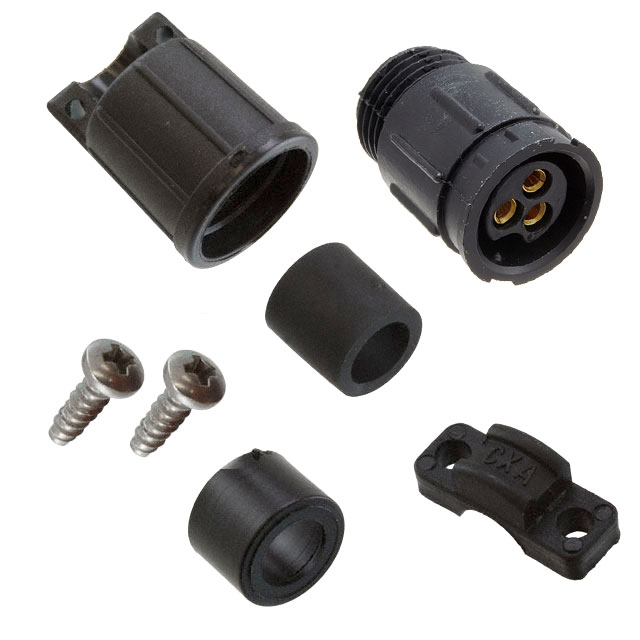

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5182-3SG-530

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5182-3SG-530

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.32 in
Cable Opening [Max] [diameter]	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm
Cable Opening [Min] [diameter]	0.3 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 V

5182-3SG Series

Part	Primary Material	Fastening Type	Contact Material	Contact Finish - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Color	Orientation	Shielding	Voltage Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Connector Type	Ingress Protection	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5182-3SG-530	Plastic	Bayonet Lock	Brass	Gold	Backshell Cable Clamp	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V	7.62 mm	0.32 in	8.13 mm	0.3 in	Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)
Conxall/Switchcraft 5182-3SG-524	Plastic	Bayonet Lock	Brass	Gold	Backshell Cable Clamp	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V	6.1 mm	0.27 in		0.24 in	Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)	6.86 mm
Conxall/Switchcraft 5182-3SG-515	Plastic	Bayonet Lock	Brass	Gold	Backshell Cable Clamp	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V					Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)		0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 5182-3SG-521	Plastic	Bayonet Lock	Brass	Gold	Backshell Cable Clamp	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V	5.33 mm	0.23 in		0.21 in	Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)	5.84 mm
Conxall/Switchcraft 5182-3SG-518	Plastic	Bayonet Lock	Brass	Gold	Backshell Cable Clamp	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V					Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5182-3SG-324	Plastic	Bayonet Lock	Brass	Gold	Backshell	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V	6.1 mm	0.27 in		0.24 in	Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)	6.86 mm
Conxall/Switchcraft 5182-3SG-328	Plastic	Bayonet Lock	Brass	Gold	Backshell	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V	7.11 mm	0.29 in		0.28 in	Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)	7.37 mm
Conxall/Switchcraft 5182-3SG-528	Plastic	Bayonet Lock	Brass	Gold	Backshell Cable Clamp	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V	7.11 mm	0.29 in		0.28 in	Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)	7.37 mm
Conxall/Switchcraft 5182-3SG-318	Plastic	Bayonet Lock	Brass	Gold	Backshell	-40 °C	115 °C	Nylon Polyamide (PA)	Black	Keyed	Unshielded	600 V					Receptacle Female Sockets	Weathertight	Free Hanging (In-Line)				4.57 mm	0.18 in	0.2 in	5.08 mm
