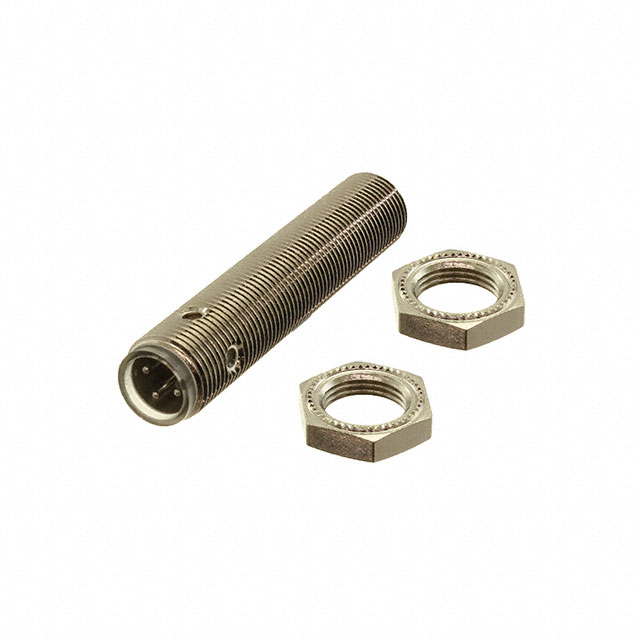

NEB6-12GM50-E2-V1
ActivePEPPERL+FUCHS
INDUCTIVE SEN 6MM PNP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NEB6-12GM50-E2-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M12 |
| Sensing Distance | 0.236 in |
| Sensing Distance | 6 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 166.22 | |
| 5 | $ 140.22 | |||
| 10 | $ 130.32 | |||
| 25 | $ 118.30 | |||
| 50 | $ 109.96 | |||
Description
General part information
NEB6 Series
INDUCTIVE SEN 6MM PNP
