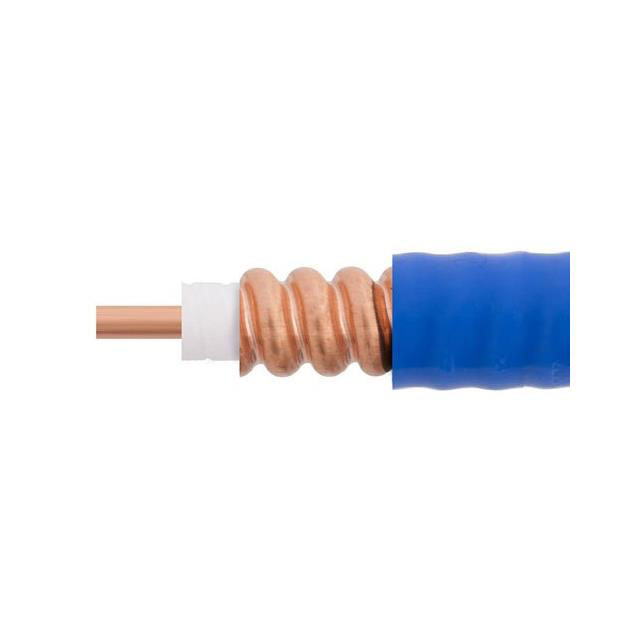

SPP-250-LLPL
ActiveAmphenol Times Microwave Systems
SPP-250-LLPL 1/4" CORRU LOW FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPP-250-LLPL |
|---|---|
| Cable Type | Coaxial - Plenum |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 4.83 mm |
| Dielectric Diameter [diameter] | 0.19 in |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.28 in |
| Jacket (Insulation) Diameter [diameter] | 7.11 mm |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Jacket Color | Blue |
| Length | Enter Number of Feet in Order Quantity |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Material | Copper, Bare |
| Spool Size | 500 ' |
| Spool Size | 152.4 m |
| VoP, Velocity of Propagation | 76 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 9.11 | |
| 2 | $ 8.68 | |||
| 3 | $ 8.43 | |||
| 5 | $ 8.13 | |||
| 7 | $ 7.94 | |||
| 10 | $ 7.74 | |||
| 25 | $ 7.25 | |||
| 50 | $ 6.90 | |||
| 100 | $ 6.56 | |||
Description
General part information
SPP Series
Coaxial - Plenum Cable Enter Number of Feet in Order Quantity 50 Ohms
