0903259026
ActiveMolex
CONN HEADER VERT 26POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0903259026 |
|---|---|
| Applications | Automotive, Industrial, General Purpose, Medical |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 118.1 µin |
| Contact Finish Thickness - Mating | 3 µm |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Brass |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating (Amps) | 1.2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height [z] | 6.4 mm |
| Insulation Height [z] | 0.252 in |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Shrouded - 2 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.45 | |
| 10 | $ 1.23 | |||
Description
General part information
90325 Series

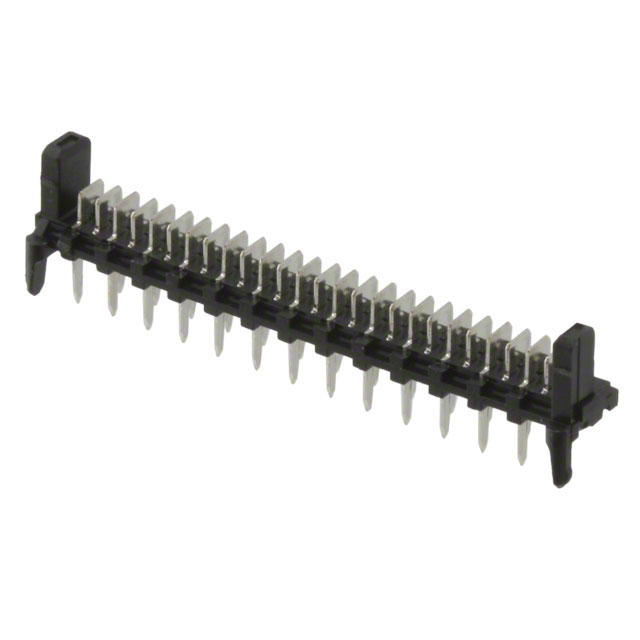

Picoflex PF-50 Header, Vertical, Low Profile, with PCB Pegs, 26 Circuits, Tin (Sn) Plating, Tube Packaging
