Q-040480005018i

Active

Amphenol Custom Cable

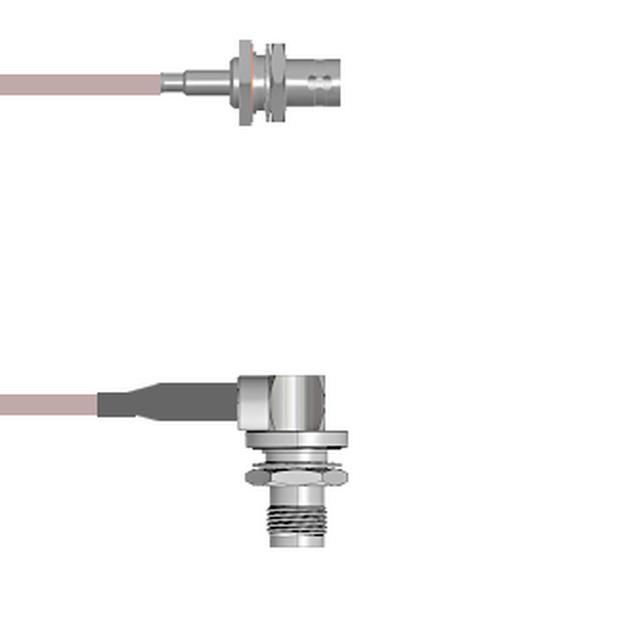

COAX CBL BNC TO TNC 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-040480005018i

Active

Amphenol Custom Cable

COAX CBL BNC TO TNC 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-040480005018i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-040480 Series

Part	Cable Type	2nd Connector Mounting Feature	1st Contact Gender	Color	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Type	Length [x]	Length [x]	2nd Connector Mounting Type	1st Connector	Style	Overall Impedance	Features	1st Connector Mounting Feature	2nd Contact Gender	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-040480005018i	RG-316	Bulkhead - Front Side Nut	Female	Copper	TNC Jack Right Angle	4 GHz	Panel Mount	457.2 mm	457.2 mm	Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female
Amphenol Custom Cable Q-040480005003M	RG-316	Bulkhead - Front Side Nut	Female	Copper	TNC Jack Right Angle	4 GHz	Panel Mount			Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female	3 m	118.1 in	9.8 '
Amphenol Custom Cable Q-040480003006i	RG-174	Bulkhead - Front Side Nut	Female	Black	TNC Jack Right Angle	4 GHz	Panel Mount			Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female	152.4 mm	6 in
Amphenol Custom Cable Q-040480003108i	RG-174	Bulkhead - Front Side Nut	Female	Black	TNC Jack Right Angle	4 GHz	Panel Mount			Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female	2.7 m	108 in	9 ft
Amphenol Custom Cable Q-040480003003i	RG-174	Bulkhead - Front Side Nut	Female	Black	TNC Jack Right Angle	4 GHz	Panel Mount			Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female	76.2 mm	3 in
Amphenol Custom Cable Q-040480003.25M	RG-174	Bulkhead - Front Side Nut	Female	Black	TNC Jack Right Angle	4 GHz	Panel Mount		250 mm	Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female				9.843 "
Amphenol Custom Cable Q-040480003036i	RG-174	Bulkhead - Front Side Nut	Female	Black	TNC Jack Right Angle	4 GHz	Panel Mount			Panel Mount	BNC Jack	BNC to TNC	50 Ohms	Shielded	Bulkhead - Front Side Nut	Female	91.44 cm	36 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.12
		25	$ 84.46
		50	$ 82.81
		100	$ 81.15
		250	$ 79.49

Description

General part information

Q-040480 Series

Cable Assembly Coaxial BNC to TNC RG-316 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
