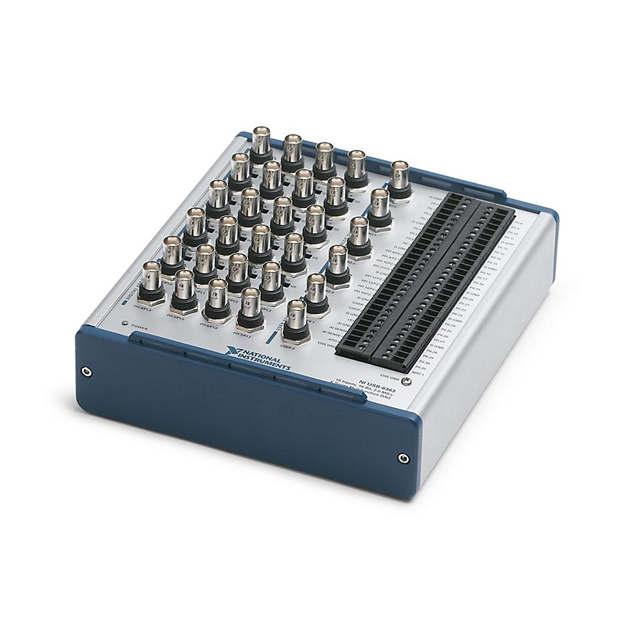

782258-01

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Search across all available documentation for this part.

Active

DAQ DEVICE MULTIFUNC I/O USB 2.0

Technical Specifications

Parameters and characteristics for this part

Specification	782258-01

Bidirectional Channels	16
Bus Connection	USB 2.0
Counter/Timers	4
Front Connection	BNC
Function	Multifunction I/O
Input Range [Max]	10 V, 1 V, 2 V, 5 V
Input Range [Min]	-5 V, -10 V, -2 V, -1 V
Input Resolution	16 Bits
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	16
Number of Inputs and Type [custom]	16
Number of Outputs and Type [custom]	4
Number of Outputs and Type [custom]	32
Output Range [Max]	10 V
Output Range [Min]	-10 V
Sampling Rate (Per Second)	1M
Type	DAQ Device

Part	Counter/Timers	Bus Connection	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Function	Sampling Rate (Per Second)	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Output Range [Min]	Output Range [Max]	Type	Bidirectional Channels	Input Range [Min]	Input Range [Max]	Front Connection	Input Resolution
NI 782258-01	4	USB 2.0	4	32	Multifunction I/O	1M	16	16	16	-10 V	10 V	DAQ Device	16	-10 V -5 V -2 V -1 V	1 V 2 V 5 V 10 V	BNC	16 Bits

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4756.74

General part information

Multifunction I/O DAQ Device USB 2.0 BNC
