960-31-12-S-AB-0

Active

Wakefield-Vette

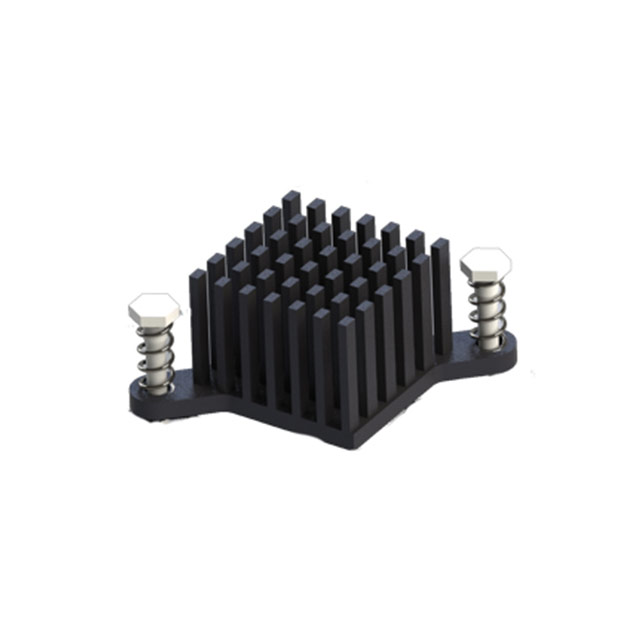

HEATSINK 31X12MM SIDE PUSH PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

960-31-12-S-AB-0

Active

Wakefield-Vette

HEATSINK 31X12MM SIDE PUSH PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	960-31-12-S-AB-0

Attachment Method	Push Pin
Fin Height [z]	0.472 in
Fin Height [z]	12 mm
Length	31 mm
Length	1.22 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 5 °C/W
Type	Top Mount
Width [x]	1.22 in
Width [x]	31 mm

960-31 Series

Part	Package Cooled	Material	Width [x]	Width [x]	Shape	Attachment Method	Thermal Resistance @ Forced Air Flow	Type	Fin Height [z]	Fin Height [z]	Material Finish	Length	Length	Fin Height [custom]	Fin Height [custom]	Fin Height	Fin Height
Wakefield-Vette 960-31-12-S-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	5 °C/W 200 LFM	Top Mount	0.472 in	12 mm	Black Anodized	31 mm	1.22 in
Wakefield-Vette 960-31-33-D-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	2 °C/W 200 LFM	Top Mount	1.299 in	33 mm	Black Anodized	31 mm	1.22 in
Wakefield-Vette 960-31-18-S-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	3.4 °C/W	Top Mount			Black Anodized	31 mm	1.22 in	18 mm	0.709 in
Wakefield-Vette 960-31-18-F-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	3.4 °C/W	Top Mount			Black Anodized	31 mm	1.22 in	18 mm	0.709 in
Wakefield-Vette 960-31-23-D-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	2.7 °C/W	Top Mount			Black Anodized	31 mm	1.22 in	23 mm	0.905 in
Wakefield-Vette 960-31-33-F-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	2 °C/W 200 LFM	Top Mount	1.299 in	33 mm	Black Anodized	31 mm	1.22 in
Wakefield-Vette 960-31-12-D-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	5 °C/W 200 LFM	Top Mount	0.472 in	12 mm	Black Anodized	31 mm	1.22 in
Wakefield-Vette 960-31-33-S-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	2 °C/W 200 LFM	Top Mount	1.299 in	33 mm	Black Anodized	31 mm	1.22 in
Wakefield-Vette 960-31-15-S-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	4 °C/W 200 LFM	Top Mount			Black Anodized	31 mm	1.22 in			0.59 "	15 mm
Wakefield-Vette 960-31-28-F-AB-0	BGA	Aluminum	1.22 in	31 mm	Pin Fins Square	Push Pin	2.2 °C/W 200 LFM	Top Mount	1.102 in	28 mm	Black Anodized	31 mm	1.22 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.90
		10	$ 5.75
		25	$ 5.43
		40	$ 5.11
		100	$ 4.79
		300	$ 4.47
		500	$ 4.15
		1000	$ 4.07

Description

General part information

960-31 Series

Heat Sink BGA Aluminum Top Mount
