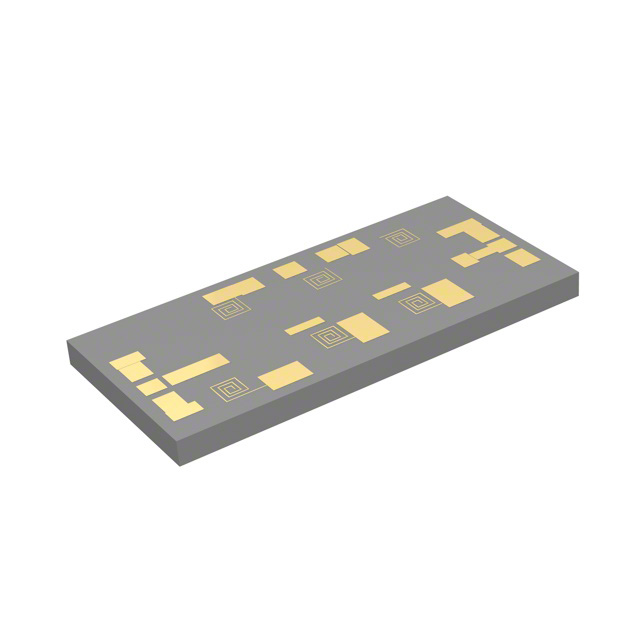

AMMC-6220-W50
ObsoleteBroadcom Limited
IC RF AMP 6GHZ-20GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
AMMC-6220-W50
ObsoleteBroadcom Limited
IC RF AMP 6GHZ-20GHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AMMC-6220-W50 |
|---|---|
| Current - Supply | 55 mA |
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 6 GHz |
| Gain | 23 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 2 dB |
| P1dB | 9 dBm |
| Package / Case | Module |
| Supplier Device Package | Module |
| Test Frequency [Max] | 20 GHz |
| Test Frequency [Min] | 16 GHz |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMMC-6220 Series
RF Amplifier IC 6GHz ~ 20GHz Module
