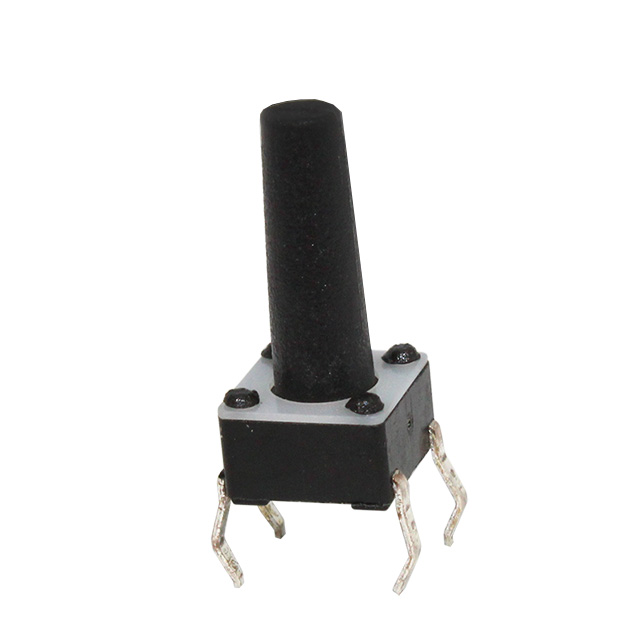

CT110211.0F260

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	CT110211.0F260

Actuator Height off PCB, Vertical	11 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Operating Force	Actuator Type	Actuator Material	Mounting Type	Outline [y]	Outline [x]	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Circuit	Illumination	Switch Function	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Switch Travel	Termination Style	Actuator Height off PCB, Vertical [z]
CIT Relay and Switch CT110211.0F260	260 gf	Plunger for Cap	Nylon 6/6 Polyamide (PA66)	Through Hole	6 mm	6 mm	0.05 A 50 VDC	11 mm	SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	85 °C	-40 °C	0.25 mm	PC Pin
CIT Relay and Switch CT110211.0F100	100 gf	Plunger for Cap	Nylon 6/6 Polyamide (PA66)	Through Hole	6 mm	6 mm	0.05 A 50 VDC	11 mm	SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	85 °C	-40 °C	0.25 mm	PC Pin
CIT Relay and Switch CT110211.5F100	100 gf	Plunger for Cap	Nylon 6/6 Polyamide (PA66)	Through Hole	6 mm	6 mm	0.05 A 50 VDC		SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	85 °C	-40 °C	0.25 mm	PC Pin	11.5 mm
CIT Relay and Switch CT110211.5F260	260 gf	Plunger for Cap	Nylon 6/6 Polyamide (PA66)	Through Hole	6 mm	6 mm	0.05 A 50 VDC		SPST-NO	Non-Illuminated	Off-Mom	Top Actuated	85 °C	-40 °C	0.25 mm	PC Pin	11.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
