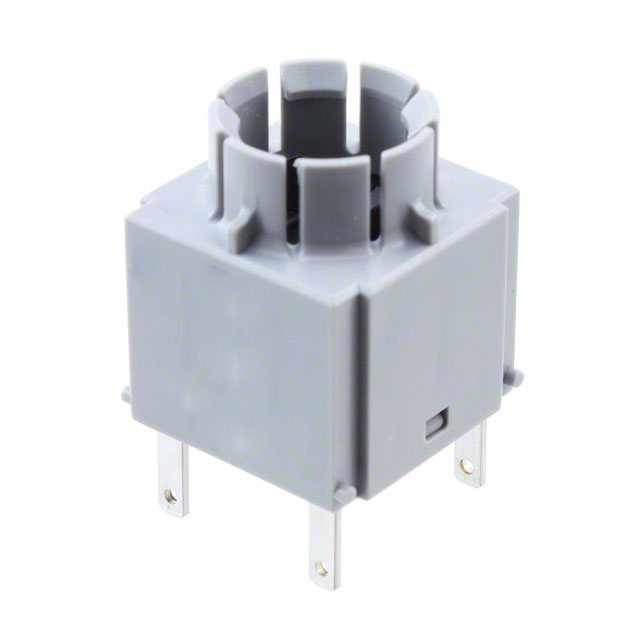

1.20.122.023/0000

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Search across all available documentation for this part.

Active

RAFI USA

CONTACT BLOCK DPST-NC 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1.20.122.023/0000

(Select First, Then Apply Filters) Compatible Series	Rafix 16
Circuit	DPST-NC
Contact Rating @ Voltage	3 A, 120 VAC
Requires	Switch Body
Termination Style	Quick Connect - 0.110" (2.8mm)

Part	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Termination Style	Circuit	(Select First, Then Apply Filters) Compatible Series	Requires	Contact Rating @ Voltage
RAFI USA 1.20.122.012/0000	35 VAC/DC	0.25 A	Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 16	Switch Body
RAFI USA 1.20.122.023/0000			Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 16	Switch Body	3 A 120 VAC
RAFI USA 1.20.122.052/0000	35 VAC/DC	0.25 A	Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 16	Switch Body
RAFI USA 1.20.122.062/0000			Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 16	Switch Body	3 A 120 VAC
RAFI USA 1.20.122.022/0000			Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 16	Switch Body	3 A 120 VAC
RAFI USA 1.20.122.071/0000
RAFI USA 1.20.122.032/0000	35 VAC/DC	0.25 A	Quick Connect - 0.110" (2.8mm)	DPST-NO	Rafix 16	Switch Body
RAFI USA 1.20.122.051/0000	35 VAC/DC	0.25 A	Quick Connect - 0.110" (2.8mm)	SPST-NO + SPST-NC	Rafix 16	Switch Body
RAFI USA 1.20.122.003/0000			Quick Connect - 0.110" (2.8mm)	DPST-NC	Rafix 16	Switch Body	3 A 120 VAC
RAFI USA 1.20.122.001/0000			Quick Connect - 0.110" (2.8mm)	SPST-NO + SPST-NC	Rafix 16	Switch Body	3 A 120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block DPST-NC 3A @ 120VAC
