VS-150KR30A

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GP REV 300V 150A DO205AA

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE GP REV 300V 150A DO205AA

Technical Specifications

Parameters and characteristics for this part

Specification	VS-150KR30A

Current - Average Rectified (Io)	150 A
Current - Reverse Leakage @ Vr	35 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-40 °C

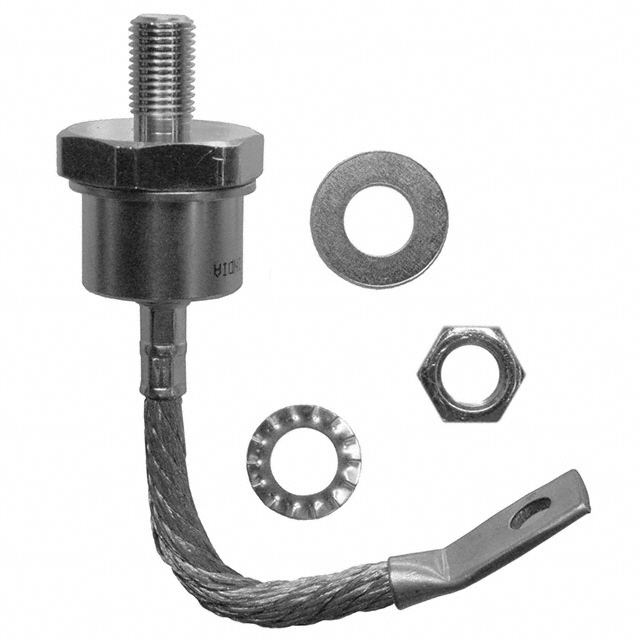

Package / Case	Stud, DO-8, DO-205AA
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-8
Supplier Device Package	DO-205AA
Technology	Standard, Reverse Polarity
Voltage - DC Reverse (Vr) (Max) [Max]	300 V
Voltage - Forward (Vf) (Max) @ If	1.33 V

Part	Current - Average Rectified (Io)	Technology	Supplier Device Package	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Package / Case	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If
Vishay General Semiconductor - Diodes Division VS-150KR30A	150 A	Reverse Polarity Standard	DO-8	DO-205AA	200 C	-40 °C	35 mA	DO-205AA DO-8 Stud	Standard Recovery >500ns	200 mA	300 V	Chassis Stud Mount	1.33 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 300 V 150A Chassis, Stud Mount DO-205AA (DO-8)
