WP6C-P024VA1-R500
ObsoleteJAE Electronics

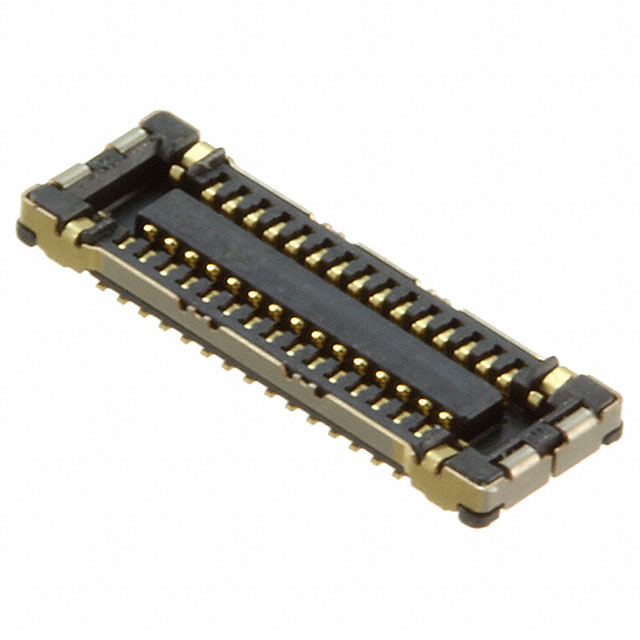

CONN PLUG 24POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP6C-P024VA1-R500
ObsoleteJAE Electronics
CONN PLUG 24POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP6C-P024VA1-R500 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board | 0.63 mm |
| Height Above Board | 0.025 in |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.65 | |
| 10 | $ 2.30 | |||
| 25 | $ 2.20 | |||
| 50 | $ 2.16 | |||
| 100 | $ 2.06 | |||
| 250 | $ 1.86 | |||
| Digi-Reel® | 1 | $ 2.65 | ||
| 10 | $ 2.30 | |||
| 25 | $ 2.20 | |||
| 50 | $ 2.16 | |||
| 100 | $ 2.06 | |||
| 250 | $ 1.86 | |||
| Tape & Reel (TR) | 3000 | $ 1.37 | ||
Description
General part information
WP6C-P02 Series
24 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
