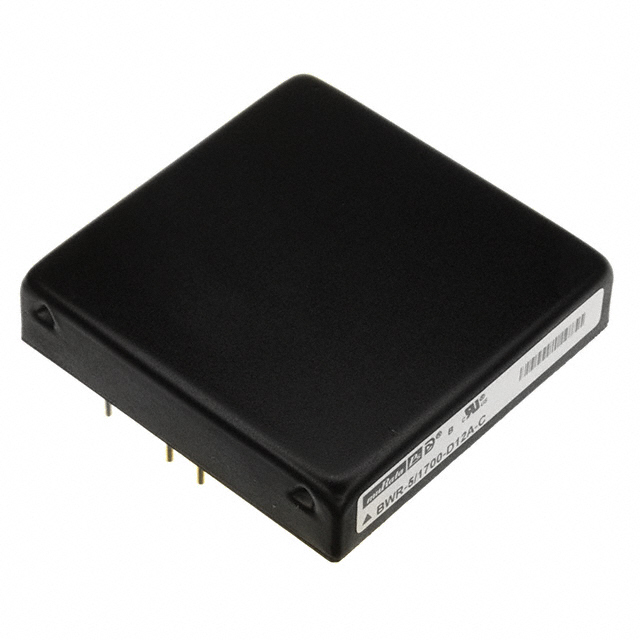

BWR-5/1700-D12A-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 17W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-5V 17W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Voltage - Input (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Applications	Voltage - Output 1	Voltage - Output 2	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Features
Murata Power Solutions Inc. BWR-5/250-D12-C	Isolated Module	36 V	250 mA	250 mA	-25 °C	75 ░C	77 %	ITE (Commercial)	5 V	-5 V	1000 V	9 V	3 W	2	8-DIP Module	0.8 in	1.25 "	0.45 "	11.4 mm	31.8 mm	20.3 mm	Through Hole
Murata Power Solutions Inc. BWR-5/1700-D12A-C	Isolated Module	36 V	1.7 A	1.7 A	-40 °C	100 °C	83 %	ITE (Commercial)	5 V	-5 V	1000 V	9 V	17 W	2	8-DIP Module 7 Leads	2 in	2 in	0.45 "	11.4 mm	50.8 mm	50.8 mm	Through Hole
Murata Power Solutions Inc. BWR-5/1500-D24A-C	Isolated Module	36 V	1.5 A	1.5 A	-40 °C	100 °C	83 %	ITE (Commercial)	5 V	-5 V	1.5 kV	18 V	15 W	2	6-DIP Module	25.4 mm	2 in	0.47 "	11.8 mm	50.8 mm	25.4 mm	Through Hole	OCP OVP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 5V -5V 1.7A, 1.7A 9V - 36V Input
