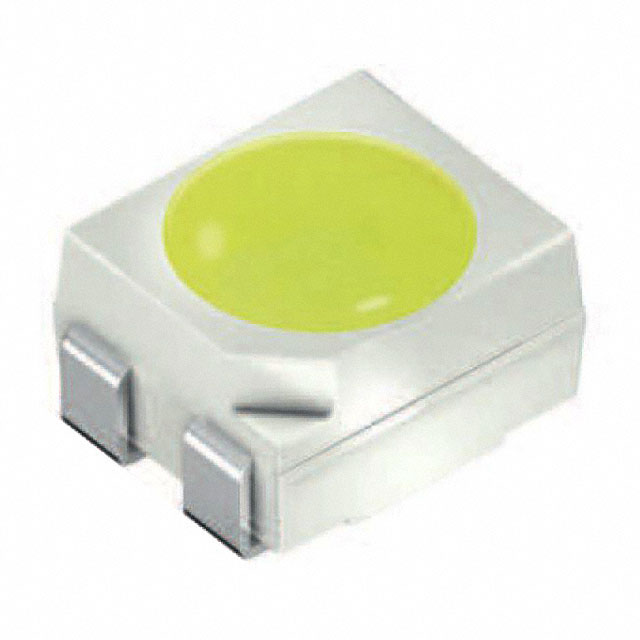

ASMT-SWBM-NV803
ActiveBroadcom Limited
LED WHITE 4PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
ASMT-SWBM-NV803
ActiveBroadcom Limited
LED WHITE 4PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMT-SWBM-NV803 |
|---|---|
| Color | White |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Yellow |
| Lens Size [diameter] | 2.2 mm |
| Millicandela Rating | 1570 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 0.77 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 0.77 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 2000 | $ 0.38 | ||
| 4000 | $ 0.36 | |||
| 6000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
| 14000 | $ 0.34 | |||
| 20000 | $ 0.33 | |||
Description
General part information
ASMT-SWBM Series
White LED Indication - Discrete 3.2V 4-PLCC
