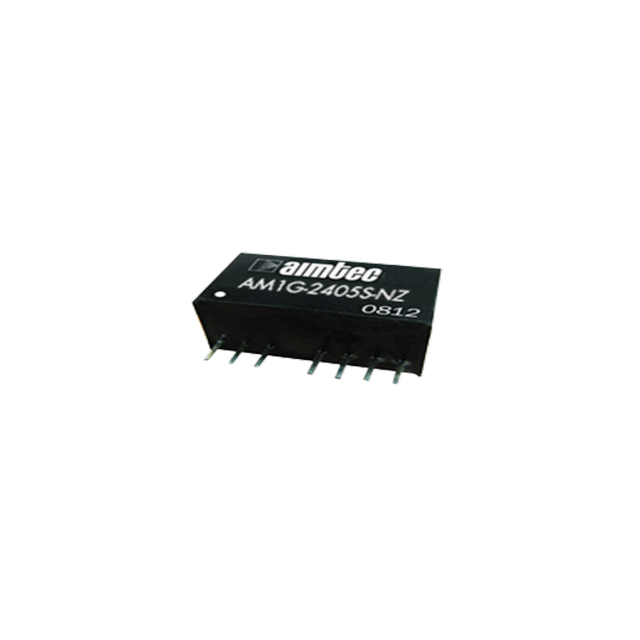

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1G-2405S-NZ

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1G-2405S-NZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	200 mA
Efficiency	77 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Package / Case	7 Leads
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.87 in
Size / Dimension [y]	9.5 mm
Size / Dimension [y]	0.37 "
Size / Dimension [z]	0.49 in
Size / Dimension [z]	12.5 mm
Supplier Device Package	8-SIP
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

AM1G Series

Part	Supplier Device Package	Applications	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Package / Case	Package / Case	Type	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Mounting Type	Voltage - Output 1	Power (Watts)	Approval Agency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)	Voltage - Output 2
aimtec AM1G-2405S-NZ	8-SIP	ITE (Commercial)	200 mA	1	-40 °C	100 °C	1.5 kV	36 V	Remote On/Off	8-SIP Module	7 Leads	Isolated Module	18 V	0.49 in	22 mm	12.5 mm	9.5 mm	0.37 "	0.87 in	77 %	Through Hole	5 V
aimtec AM1G-1209SH30-NZ		ITE (Commercial)		1	-40 °C	100 °C	3000 V	18 V	Remote On/Off	8-SIP Module		Isolated Module	9 V	0.49 in	22 mm	12.5 mm	9.5 mm	0.37 "	0.87 in	79 %	Through Hole	9 V	1 mW	cULus cURus
aimtec AM1G-0507DZ		ITE (Commercial)		2	-40 °C	85 °C	1000 V	9 V	Remote On/Off	8-SIP Module		Isolated Module	4.5 V	0.44 "	21.9 mm	11.1 mm	9.2 mm	0.36 "	0.86 in	69 %	Through Hole			CE cURus UL	7.2 V	-7.2 V	69 mA	-7.2 V
aimtec AM1G-0515DZ		ITE (Commercial)		2	-40 °C	85 °C	1000 V	9 V	Remote On/Off	8-SIP Module		Isolated Module	4.5 V	0.44 "	21.9 mm	11.1 mm	9.2 mm	0.36 "	0.86 in	70 %	Through Hole			CE cURus UL	15 V	-15 V	33 mA	-15 V
aimtec AM1G-1205S-NZ		ITE (Commercial)	200 mA	1	-40 °C	100 °C	1.5 kV	18 V	Remote On/Off	8-SIP Module		Isolated Module	9 V	0.47 "	22 mm	12 mm	9.5 mm	0.37 "	0.87 in	77 %	Through Hole	5 V		cULus cURus
aimtec AM1G-0512SH30-NZ		ITE (Commercial)	83 mA	1	-40 °C	100 °C	3000 V	9 V		8-SIP Module	7 Leads	Isolated Module	4.5 V	0.49 in	22 mm	12.5 mm	9.5 mm	0.37 "	0.87 in	76 %	Through Hole	12 V	996 mW
aimtec AM1G-0505SH30-NZ		ITE (Commercial)	200 mA	1	-40 °C	100 °C	3000 V	9 V		8-SIP Module	7 Leads	Isolated Module	4.5 V	0.49 in	22 mm	12.5 mm	9.5 mm	0.37 "	0.87 in	72 %	Through Hole	5 V
aimtec AM1G-2405SZ		ITE (Commercial)	200 mA	1	-40 °C	85 °C	1000 V	36 V		8-SIP Module	7 Leads	Isolated Module	18 V	0.44 "	21.9 mm	11.2 mm	9.2 mm	0.36 "	0.86 in	72 %	Through Hole	5 V		CE cURus
aimtec AM1G-1205SZ		ITE (Commercial)	200 mA	1	-40 °C	85 °C	1000 V	18 V	Remote On/Off	8-SIP Module		Isolated Module	9 V	0.44 "	21.9 mm	11.2 mm	9.2 mm	0.36 "	0.86 in	72 %	Through Hole	5 V		CE cURus UL
aimtec AM1G-0509SZ		ITE (Commercial)		1	-40 °C	85 °C	3000 V	9 V		8-SIP Module	7 Leads	Isolated Module	4.5 V	0.44 "	21.9 mm	11.2 mm	9.2 mm	0.36 "	0.86 in	70 %	Through Hole	9 V	999 mW	CE cURus
