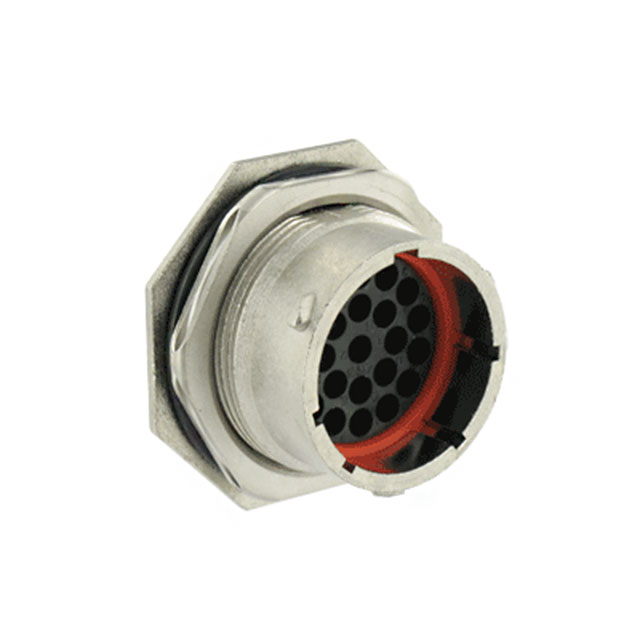

UT071823PH6

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 23POS PNL MT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT071823PH6

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	23
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert [Max] [custom]	23
Shell Size - Insert [Min] [custom]	18
Shielding	Shielded
Type	For Male Pins

UT071 Series

...

Part	Contact Size	Housing Color	Contact Type	Orientation	Contact Shape	Shielding	Material Flammability Rating	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Note	Ingress Protection	Number of Positions	Connector Type	Fastening Type	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Type	Insert Material	Shell Material	Mounting Feature	Shell Size - Insert	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton UT071823PH	16	Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0	18	23	Contacts Not Included	IP67 - Dust Tight Waterproof	23	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Male Pins	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut
Souriau-Sunbank by Eaton UT07104SH01	16	Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0			Contacts Not Included	IP67 - Dust Tight Waterproof	4	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Female Sockets	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut	10-4
Souriau-Sunbank by Eaton UT07102W2PH6		Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0			Contacts Not Included	IP68 IP69K	4	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Male Pins	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut	10-2W2	12 (2) 20 (2)
Souriau-Sunbank by Eaton UT071412PWH	16	Silver	Crimp and Solder	W	Circular	Shielded	UL94 V-0			Contacts Not Included	IP67 - Dust Tight Waterproof	12	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Male Pins	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut	14-12
Souriau-Sunbank by Eaton UT07102W2PH		Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0			Contacts Not Included	IP67 - Dust Tight Waterproof	4	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Male Pins	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut	10-2W2	12 (2) 20 (2)
Souriau-Sunbank by Eaton UT071823PH6	16	Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0	18	23	Contacts Not Included	IP68 IP69K	23	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Male Pins	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut
Souriau-Sunbank by Eaton UT071619SWH	16	Silver	Crimp and Solder	W	Circular	Shielded	UL94 V-0			Contacts Not Included	IP67 - Dust Tight Waterproof	19	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Female Sockets	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut			16	19
Souriau-Sunbank by Eaton UT071619SH	16	Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0			Contacts Not Included	IP67 - Dust Tight Waterproof	19	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Female Sockets	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut			16	19
Souriau-Sunbank by Eaton UT07103PH01	16	Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0			Contacts Not Included	IP67 - Dust Tight Waterproof		Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Male Pins	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut	10-3				2	3	1
Souriau-Sunbank by Eaton UT07102W2SH601		Silver	Crimp and Solder	N	Circular	Shielded	UL94 V-0			Contacts Not Included	IP68 IP69K	4	Receptacle Housing	Bayonet Lock	Nickel	-40 °C	105 ░C	For Female Sockets	Thermoplastic Glass Filled	Zinc Alloy Halogen Free	Bulkhead - Front Side Nut	10-2W2	12 (2) 20 (2)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 31.23

Description

General part information

UT071 Series

23 Position Circular Connector Receptacle Housing Panel Mount
