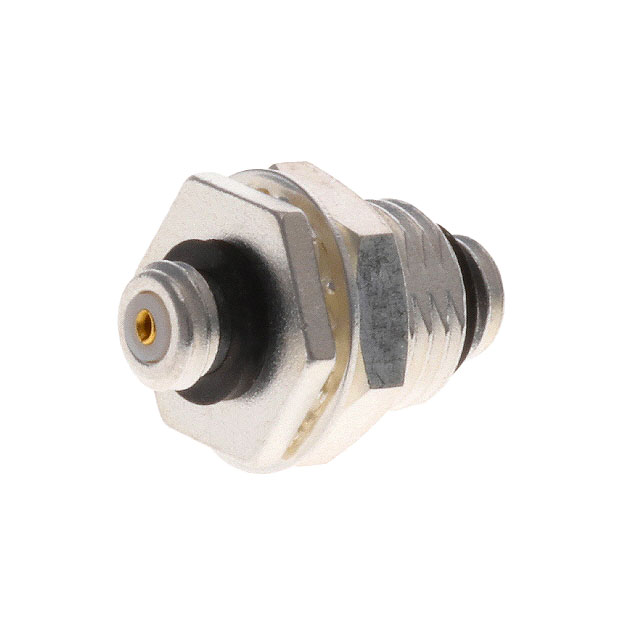

033-0053-0001

Active

TE Connectivity Raychem Cable Protection

03300530001

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

03300530001

Technical Specifications

Parameters and characteristics for this part

Specification	033-0053-0001

Adapter Type	Jack to Jack
Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Dielectric Material	Polytetrafluoroethylene (PTFE)
Impedance	50 Ohms
Mounting Feature	Bulkhead
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Dielectric Material	Adapter Type	Mounting Feature	Conversion Type	Center Contact Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Body Material	Center Gender	Style
TE Connectivity Raychem Cable Protection 033-0053-0001	Polytetrafluoroethylene (PTFE)	Jack to Jack	Bulkhead	Same Series	Beryllium Copper	50 Ohms	-55 °C	125 °C	Silver	Gold	Brass	Female to Female	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector To 50 Ohms
