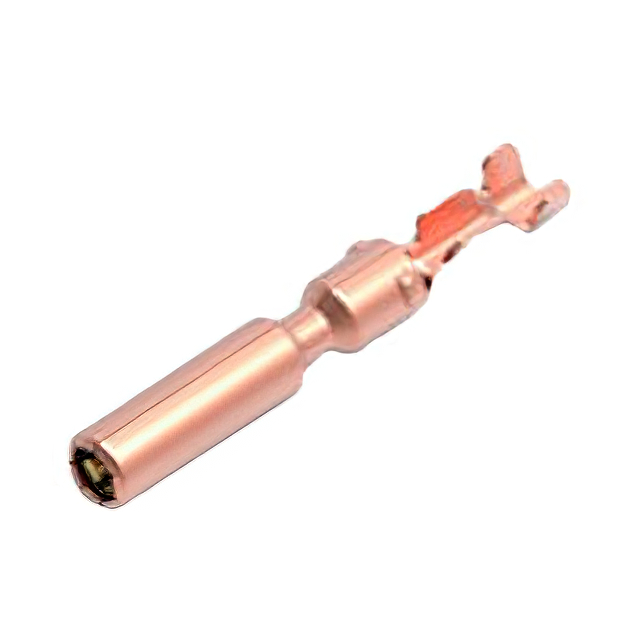

60-0199-080-P00

Active

TE Intercontec

CONTACT SKT SZ 1.0MM CRIMP GOLD

Search across all available documentation for this part.

Active

TE Intercontec

CONTACT SKT SZ 1.0MM CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	60-0199-080-P00

Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Size	1 mm
Contact Termination	Crimp
Contact Type	Socket
Features	Insulation Support
Type	Power, Machined
Wire Gauge or Range - mm˛ [Max] [custom]	0.2 mm˛
Wire Gauge or Range - mm˛ [Min] [custom]	0.08 mm˛

Part	Type	Contact Termination	Contact Finish	Contact Size	Contact Type	Features	Wire Gauge or Range - mm˛ [Min] [custom]	Wire Gauge or Range - mm˛ [Max] [custom]	Contact Material	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛
TE Intercontec 60-0199-080-P00	Power Machined	Crimp	Gold	1 mm	Socket	Insulation Support	0.08 mm˛	0.2 mm˛	Phosphor Bronze
TE Intercontec 60-0197-011-P00	Power Machined	Crimp	Gold	1.5 mm	Socket				Brass	2.5 mm˛	0.35 mm˛
TE Intercontec 60-0193-023-P00	Power Machined	Crimp	Silver	8 mm	Socket				Brass			35 mm˛
TE Intercontec 60-0192-023-P00	Power Machined	Crimp	Silver	8 mm	Socket				Brass			50 mm˛
TE Intercontec 60-0195-023-P00	Power Machined	Crimp	Silver	8 mm	Socket				Brass			16 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7000	$ 0.33

General part information

Socket Contact Size 1.0mm Crimp Gold
