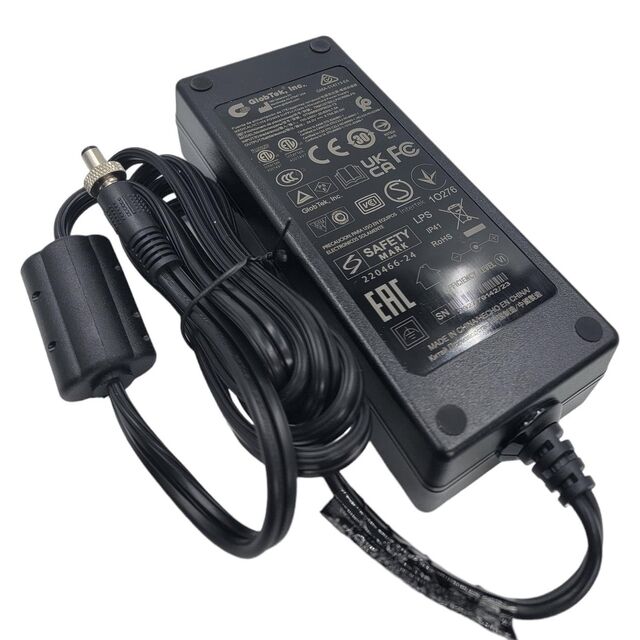

TR9CI3750LLP4CR6BLPS

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 90W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 24V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CI3750LLP4CR6BLPS

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, ETL, CB, UKRSepro, VCCI, LPS, CCC, S-Mark, RCM, EAC, PSE, CE
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	3.75 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	13.8 mm
Polarization	Positive Center
Power (Watts)	90 W
Region Utilized	International
Size / Dimension [x]	149.3 mm
Size / Dimension [x]	5.88 in
Size / Dimension [y]	62.8 mm
Size / Dimension [y]	2.47 in
Size / Dimension [z]	1.34 in
Size / Dimension [z]	34 mm
Standard Number	1310, 60601-1-2, 62368-1, 60335-1, 60601-1-11, 61347-1, 60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	24 V

Part	Voltage - Output	Polarization	Output Connector	Output Connector [diameter]	Output Connector [z]	Input Connector	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Cord Length	Cord Length	No Load Power Consumption [Max]	Form	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Input Type	Standard Number	Power (Watts)	Region Utilized	Approval Agency	Cord Length	Output Connector [x]
GlobTek, Inc. TR9CI3750CCP-IM(R6B)	24 V	Positive Center	Barrel Plug	2.1 mm 5.5 mm	11 mm	IEC 320-C14	3.75 A	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	150 mW	Desktop (Class I)	Level VI	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	Cord	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	90 W	International	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI
GlobTek, Inc. TR9CI3750LLP4CR6BLPS	24 V	Positive Center	Barrel Plug	2.5 mm 5.5 mm		IEC 320-C14	3.75 A	90 VAC	264 VAC	Household Appliances ITE (Commercial) Medical		1.53 m	150 mW	Desktop (Class I)	CoC Tier 2 Level VI	149.3 mm	62.8 mm	2.47 in	1.34 in	5.88 in	34 mm	Cord	1310 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	90 W	International	CB CCC CE cETLus EAC ETL LPS PSE RCM S-Mark UKRSepro VCCI	60.2 in	13.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
