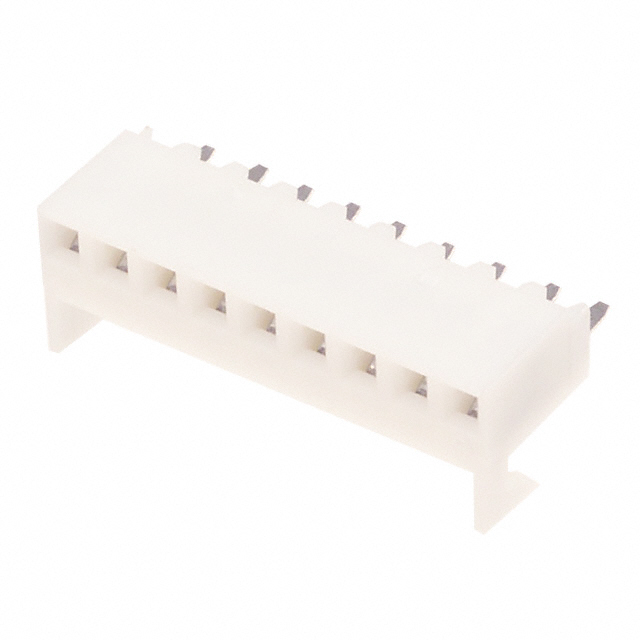

0022022095

Active

Molex

CONN RCPT 9POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0022022095

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.35 mm
Contact Length - Post	0.132 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Non-Gendered
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Board Hooks
Insulation Color	White
Insulation Height	0.311 in
Insulation Height	7.9 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

002202 Series

Part	Termination	Connector/Contact Type	Contact Finish	Cable End Type	Housing Material	Material Flammability Rating	Voltage Rating	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	FFC, FCB Thickness	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Flat Flex Type	Contact Material	Number of Positions Loaded	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Style	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Type	Insulation Height	Insulation Height	Connector Type	Contact Shape	Applications
Molex 0022023163	Solder	Contacts Vertical - 1 Sided	Tin	Straight	Polyester	UL94 V-0	200 V	16	0.256 in	6.5 mm	2.54 mm	0.1 in	0.3 mm	Low Insertion Force (LIF)	-40 °C	105 ░C	Through Hole	FFC	Phosphor Bronze
Molex 0022022095	Solder					UL94 V-0	250 VAC							Board Hooks	-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull	9	2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
Molex 0022023123	Solder	Contacts Vertical - 1 Sided	Tin	Straight	Polyester	UL94 V-0	200 V		0.256 in	6.5 mm	2.54 mm	0.1 in	0.3 mm	Low Insertion Force (LIF)	-40 °C	105 ░C	Through Hole	FFC	Phosphor Bronze														12
Molex 0022023113	Solder	Contacts Vertical - 1 Sided	Tin	Straight	Polyester	UL94 V-0	200 V		0.256 in	6.5 mm	2.54 mm	0.1 in	0.3 mm	Low Insertion Force (LIF)	-40 °C	105 ░C	Through Hole	FFC	Phosphor Bronze														11
Molex 0022027093	Solder					UL94 V-0	250 VAC								-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull	9	2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
Molex 0022022105	Solder					UL94 V-0	250 VAC							Board Hooks	-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull	10	2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
Molex 0022022185	Solder					UL94 V-0	250 VAC							Board Hooks	-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull	18	2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
Molex 0022027163	Solder					UL94 V-0	250 VAC	16							-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull		2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
Molex 0022027053	Solder					UL94 V-0	250 VAC								-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull		2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
Molex 0022022055	Solder					UL94 V-0	250 VAC							Board Hooks	-40 °C	80 C	Through Hole		Brass	All	Tin	Nylon Polyamide (PA)	2.54 µm	100 µin	3.35 mm	0.132 in	White	0.1 in	2.54 mm	2.5 A	Board to Board Cable	Push-Pull		2.54 çm	100 çin	1	Non-Gendered	0.311 in	7.9 mm	Receptacle	Square	Automotive General Purpose Medical Telecommunications
