333-022-559-802
ActiveEDAC Inc.

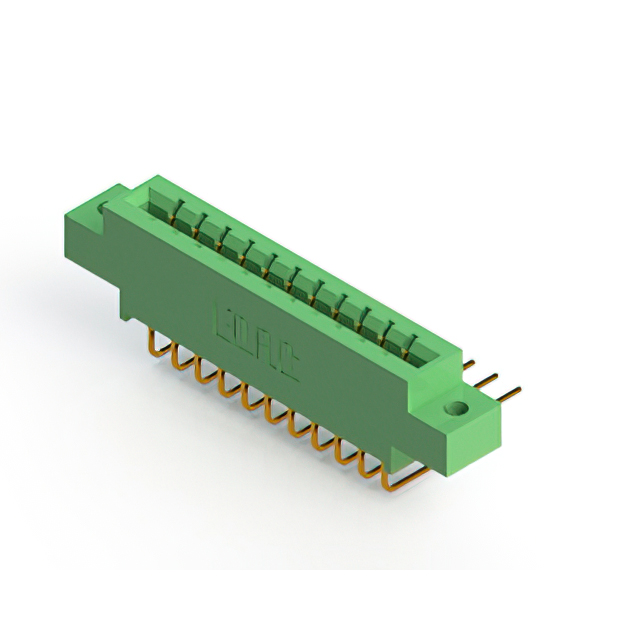

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
333-022-559-802
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-022-559-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
333-022 Series
...
| Part | Material - Insulation | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows | Contact Material | Termination | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Contact Type | Number of Rows | Gender | Number of Positions | Number of Positions/Bay/Row [custom] | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 1 | Copper Alloy | Wire Wrap | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 1 | Female | 22 positions | 22 | Gold | ||||||
EDAC Inc. | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 1 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 1 | Female | 22 positions | 22 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Polyester Thermoplastic | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | -40 °C | 105 ░C | 2 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 2 | Female | 22 positions | 11 | Gold | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | Card Extender | ||
EDAC Inc. | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 1 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 1 | Female | 22 positions | 22 | Gold | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |||
EDAC Inc. | Polyester Thermoplastic | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 2 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 2 | Female | 22 positions | 11 | Gold | ||||||
EDAC Inc. | Polyester Thermoplastic | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | -40 °C | 105 ░C | 2 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 2 | Female | 22 positions | 11 | Gold | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Polyester Thermoplastic | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 1 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 1 | Female | 22 positions | 22 | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Diallyl Phthalate (DAP) | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 2 | Copper Alloy | Solder Eyelet(s) | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 2 | Female | 22 positions | 11 | Gold | ||||||
EDAC Inc. | Diallyl Phthalate (DAP) | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 1 | Copper Alloy | Solder Eyelet(s) | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 1 | Female | 22 positions | 22 | Gold | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Polyester Thermoplastic | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | -40 °C | 105 ░C | 2 | Copper Alloy | Solder | Green | 10 Áin | 0.25 Ám | 0.156 in | 3.96 mm | Cantilever | 2 | Female | 22 positions | 11 | Gold | 4-40 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
333-022 Series
22 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
